NEW RELEASE
<tc>Ray Pro</tc>
250W Mid-drive Motor, 80Nm Torque Carbon Fiber City E-bike
Spec
| Material | Carbon fiber |
| Motor | 250 W Ananda brushless mid-drive motor |
| Sensor | Torque sensor |
| Torque | 80 Nm |
| Tires | 700 × 42C spoked tires |
| Lighting | Front and rear lights |
| Shifting system | SHIMANO CUES 10-speed |
| Brakes | Tektro hydraulic disc brakes, 160 mm front & rear |
| Battery | 36 V 10 Ah removable lithium-ion battery |
| Speed | 25 km/h |
| Range | Up to 100 km (PAS support level 1) |
| Charging time | Approx. 1.5–2 hours (Charging time may vary depending on the battery's usage.) |
| Maximum climbing ability | 10° |
| Display | Integrated LED display |
| Bicycle weight | 21.2 kg (46.7 lbs) |
| Gross weight | 30.4 kg (67 lbs) |
Note: All weights given are subject to a tolerance of ±3% to ±5%. The bike weight includes the battery, accessories are not included.
Size
| Recommended height | 165–189 cm (5.41–6.2 ft) |
| Maximum payload | 120 kg (264.5 lbs) |
| Packaging dimensions (L × W × H) | 153 × 230 × 84 cm |
| A – Wheelbase | 116.8 cm |
| B – Total length | 189.5 cm |
| C – Reach | 49.6 cm |
| D – Standover height | 78.5 cm |
| E – Minimum saddle height | 87.6 cm |
| F – Maximum saddle height | 93.5 cm |
| G – Handlebar height | 99.5 cm |
Note: There may be a deviation of 0-5cm between measurement values and actual dimensions.
What's in the Box?
| Ray Pro E-Bike | ×1 |
| Battery | 36V 10Ah lithium-ion battery ×1 |
| Charger | 48V 8Ah battery charger ×1 |
| Pedals | ×2 |
| Front & rear mudguard | ×1 |
| Bicycle rack | ×1 |
| Assembly tool | ×1 |
| Operating instructions | ×1 |
Note: The product delivered depends on the option you chose when ordering.
FAQ
1. Order processing timesn:
Your order will be shipped from the warehouse closest to your delivery address. The estimated delivery time is 2 to 10 days.
For further information on delivery locations and costs, please see our Shipping guidelines.
*A notice: Delivery may not be available to remote areas or islands. For special requests or urgent deliveries, please contact our customer service; we will do our best to meet your needs.
2. Ray Pro User Manual
Please click here, to view the user manual.
(You can find the instructions in other languages by clicking here) here click.)

Power with Smart
Ray Pro, Most Powerful Mid-drive Carbon City E-bike
-

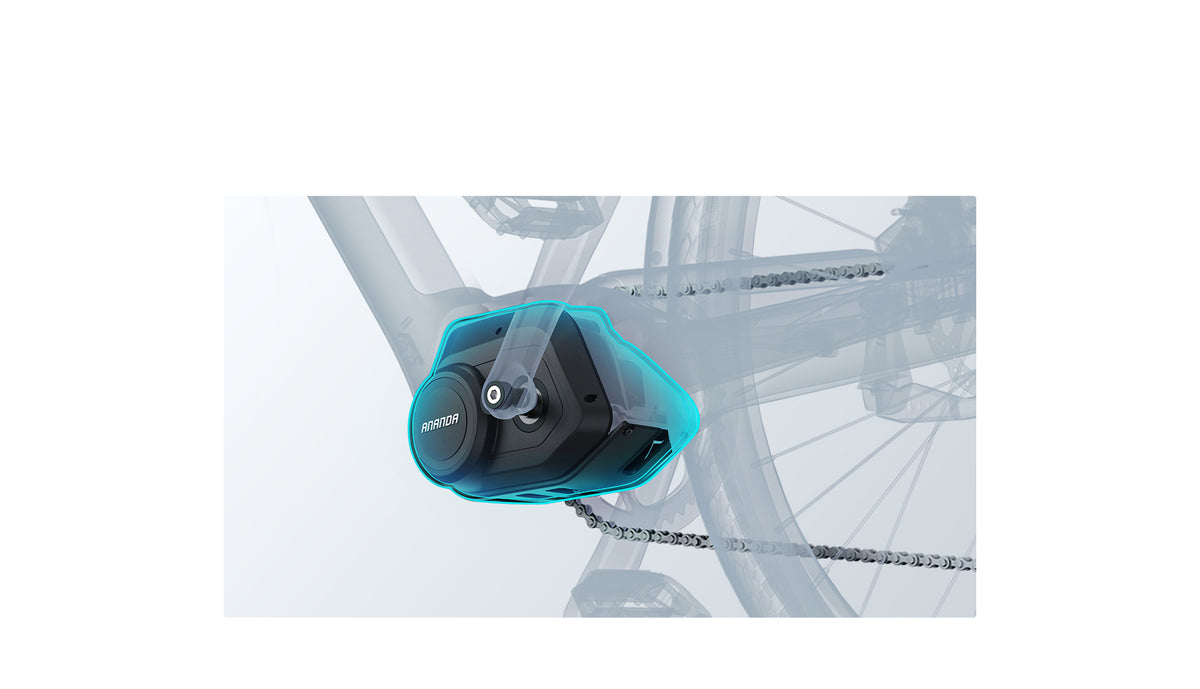

250W Mid-drive Motor -
80Nm Powerful Torque -

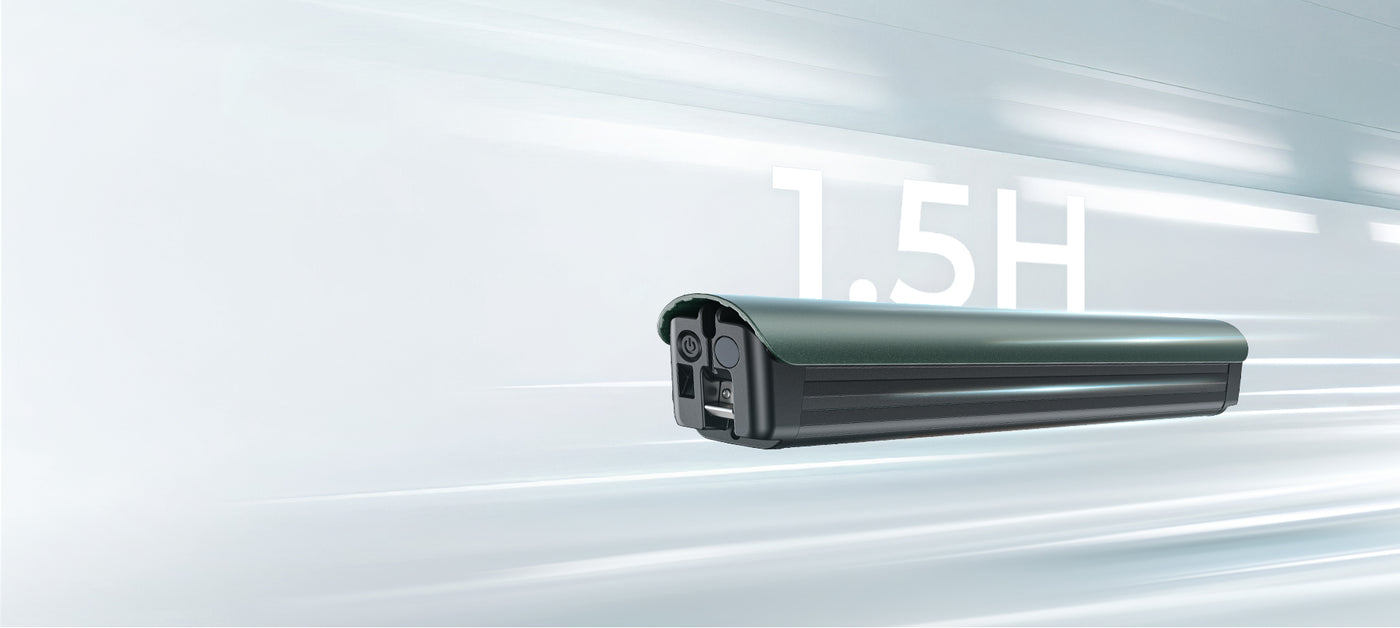

1.5h Fast Charging -
Anti-theft Module -
Carbon Frame -
Removable Battery -
Smart Lock
<tc>Why Ray Pro Stands Out</tc>
| Product facet |
|
Vanmoof S5
|
Cube Editor Hybrid SLT FE 400X
|
|---|---|---|---|
| Price | |||
| Price | €2,399 | €3,298 | €3,499 |
| Frame | |||
| Frame | Carbon Fiber | Aluminum | Aluminum Carbon fork |
| Torque | |||
| Torque | 80Nm | 68Nm | 55Nm |
| Motor | |||
| Motor | 250W Mid Motor | 250W Hub Motor | 250W Mid Motor |
| Battery capacity | |||
| Battery capacity | 36V 10Ah | 487Wh | 400Wh |
|
|
|||
100km | 60-150km | / | |
| iOT | |||
| iOT | Motion detection | Kick Lock with active-retract pin Integrated Theft Defense Automatic Rider Recognition Manual disarm with backup code Anti-theft nuts and bolts GPS and Bluetooth location tracking | / |
|
|
|||
1.5h | 6.5h | 3.5-4h | |
| Brakes | |||
| Brakes | Tektro hydraulic | Hydraulic | Hydraulic |
| Tires | |||
| Tires | 700c | 700c | 700c |
|
|
|||
Shimano 10 speed | Automatic 4-speed | Shimano Deore BR-M6100 | |
| Weight | |||
| Weight | 21.2kg | 23kg | 19.2kg |
IT'S ALL IN DETAILS

Smartbar

Shimano 10-Speed Gears

700c Tires

Tektro Hydraulic Brakes
Heb the bikes with the name cooked vanwege zijn uiterlijk en het weight, moet hem edere dag 1 verdieping naar boven tillen. The smart lock, app and top navigation, and the lighting in the room is really handy! En valt in het donker zeker op! Fietst top and voelt stevig and robust aan. Some of this is well-lit and the rear light is on the sun's energy, so it doesn't have the heel steady on either side of the old work.
The MapFour Ray Pro has been great for my daily city rides. The battery easily handles my 40 km round trip. The engine is perfect on flat roads—only on bigger inclines it starts to feel a bit weak. But for normal commuting, it does the job really well.
Fast, flawless delivery, very well packaged. After final assembly, it was time for the first ride. Excellent handling. The motor delivers plenty of power and the torque sensor works smoothly. I'm very satisfied. This certainly won't be my last bike from MapFour.
First of all, I'm not a professional cyclist.This bicycle perfectly fulfills my needs. It's well-made and easy to assemble. All parts were perfectly packaged. All necessary mounting hardware is included. I find the display very appealing, clearly visible, and it offers a wide range of settings.
My bike arrived around five days ago and I've already ridden around 70 kilometers. I love the quality and the look of the bike.
Also the motor helps me to arrive at my destination quite fast (my top speed so far has been 40km/h, and I usually drive at around 25-30km/h).
All in all I would really recommend this bike.
