NEW RELEASE

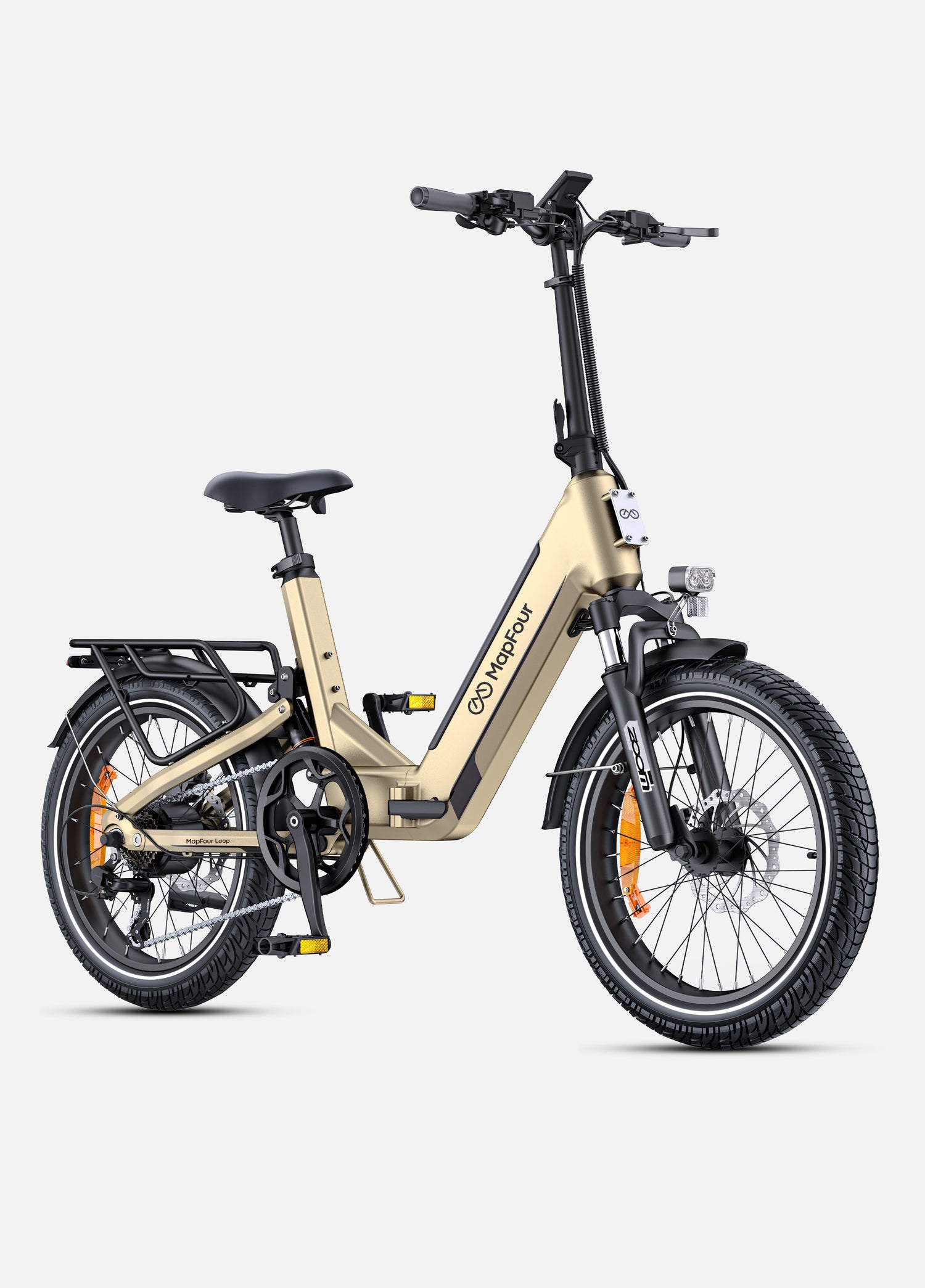

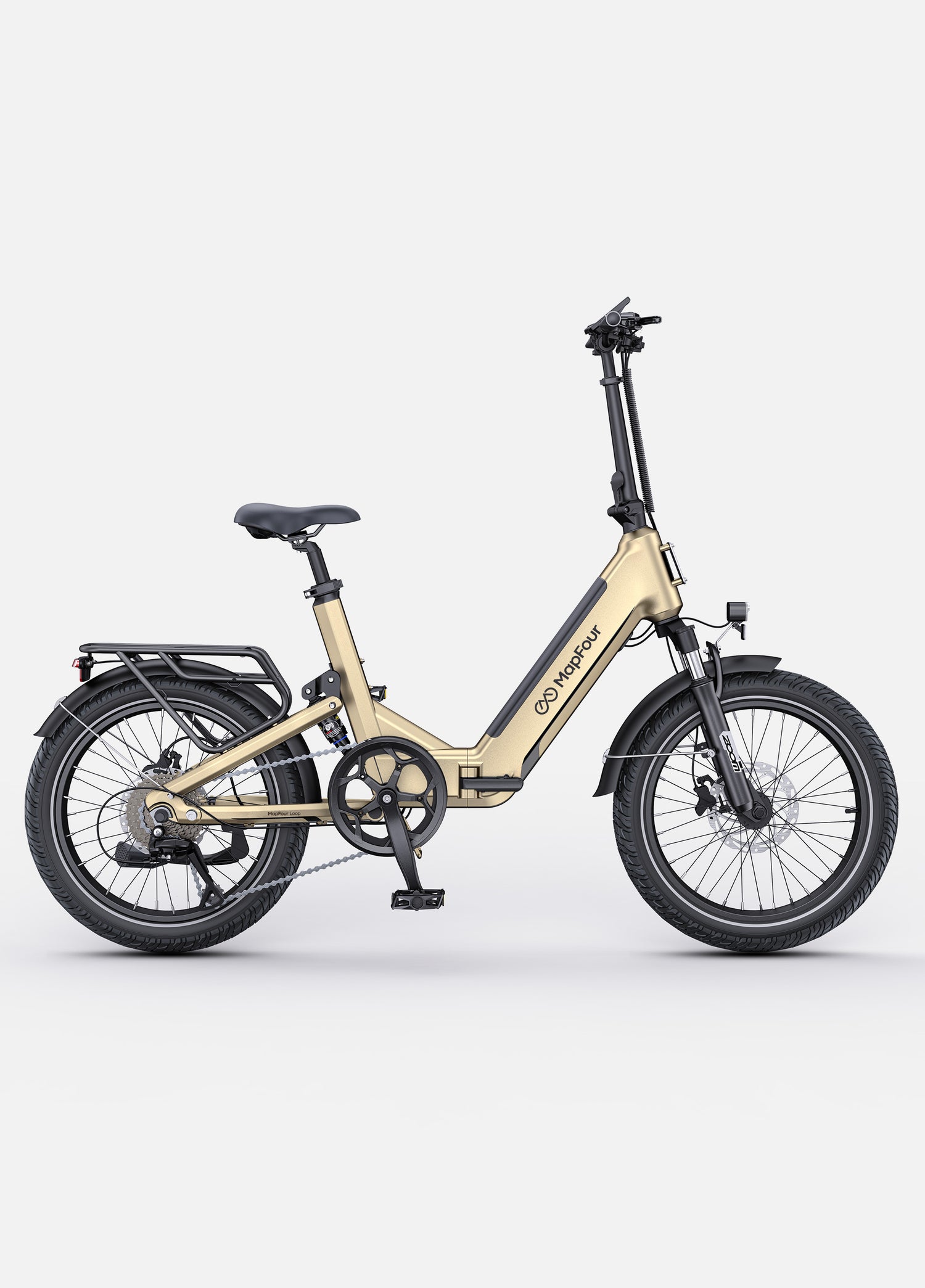

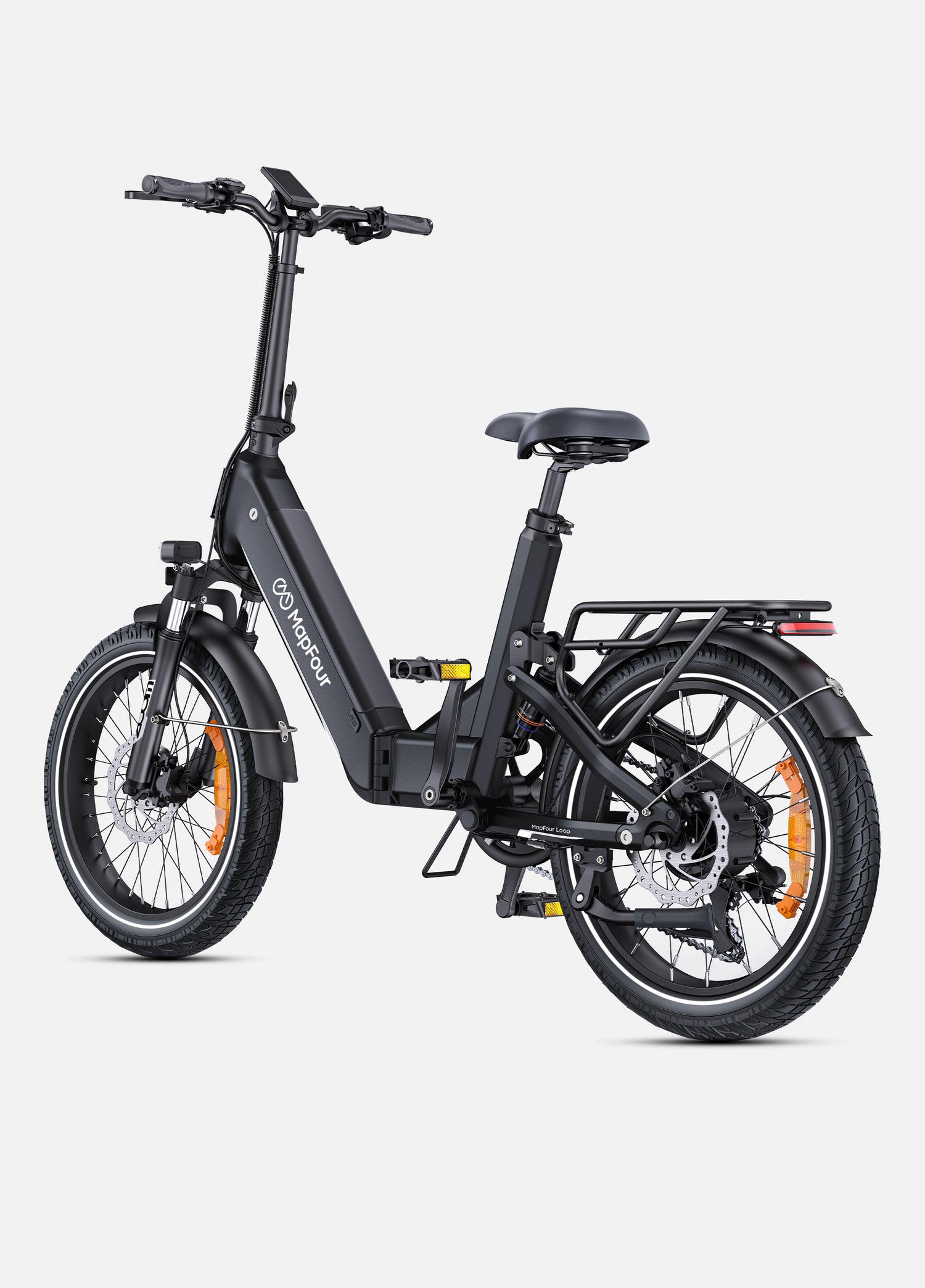

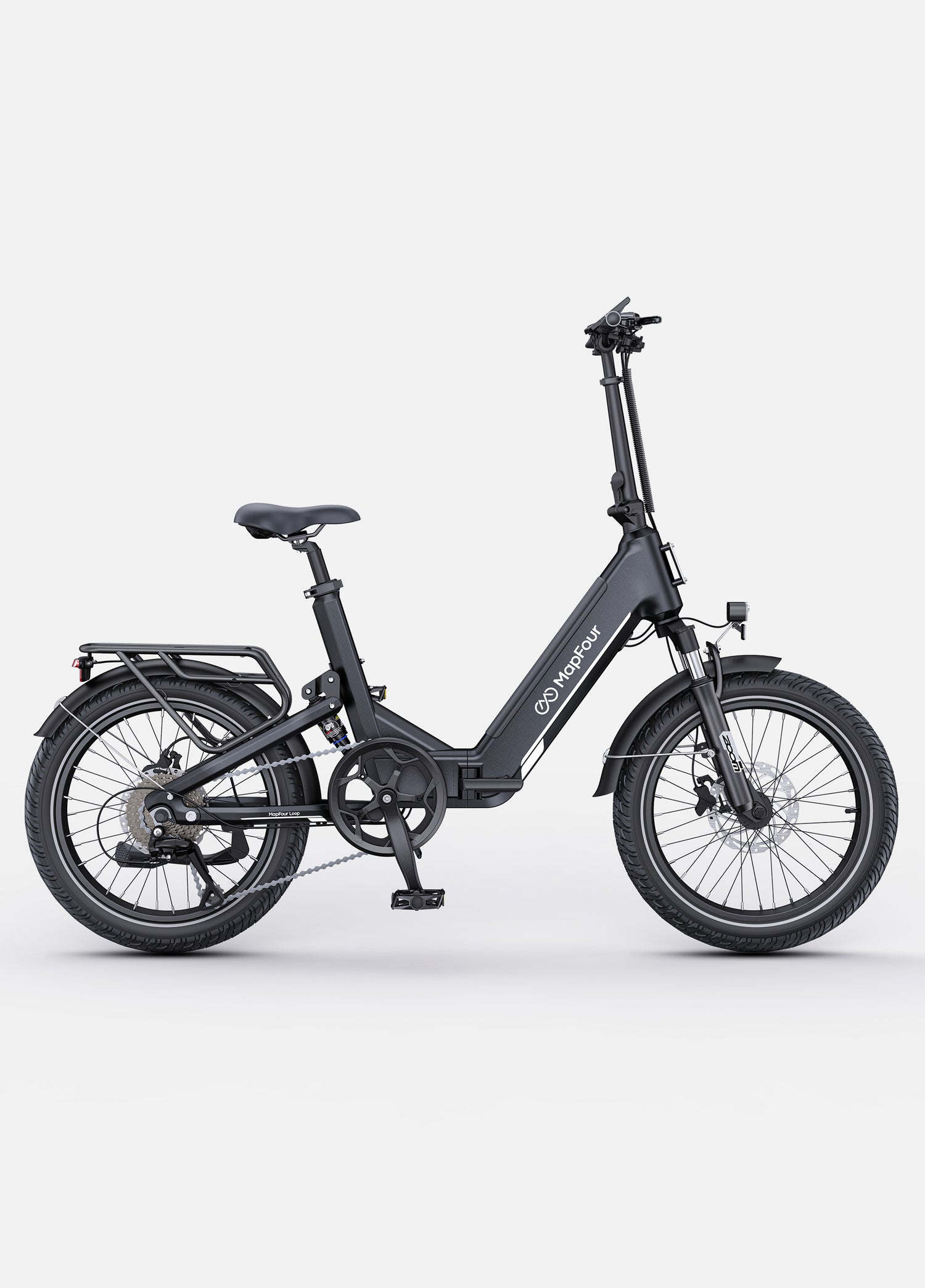

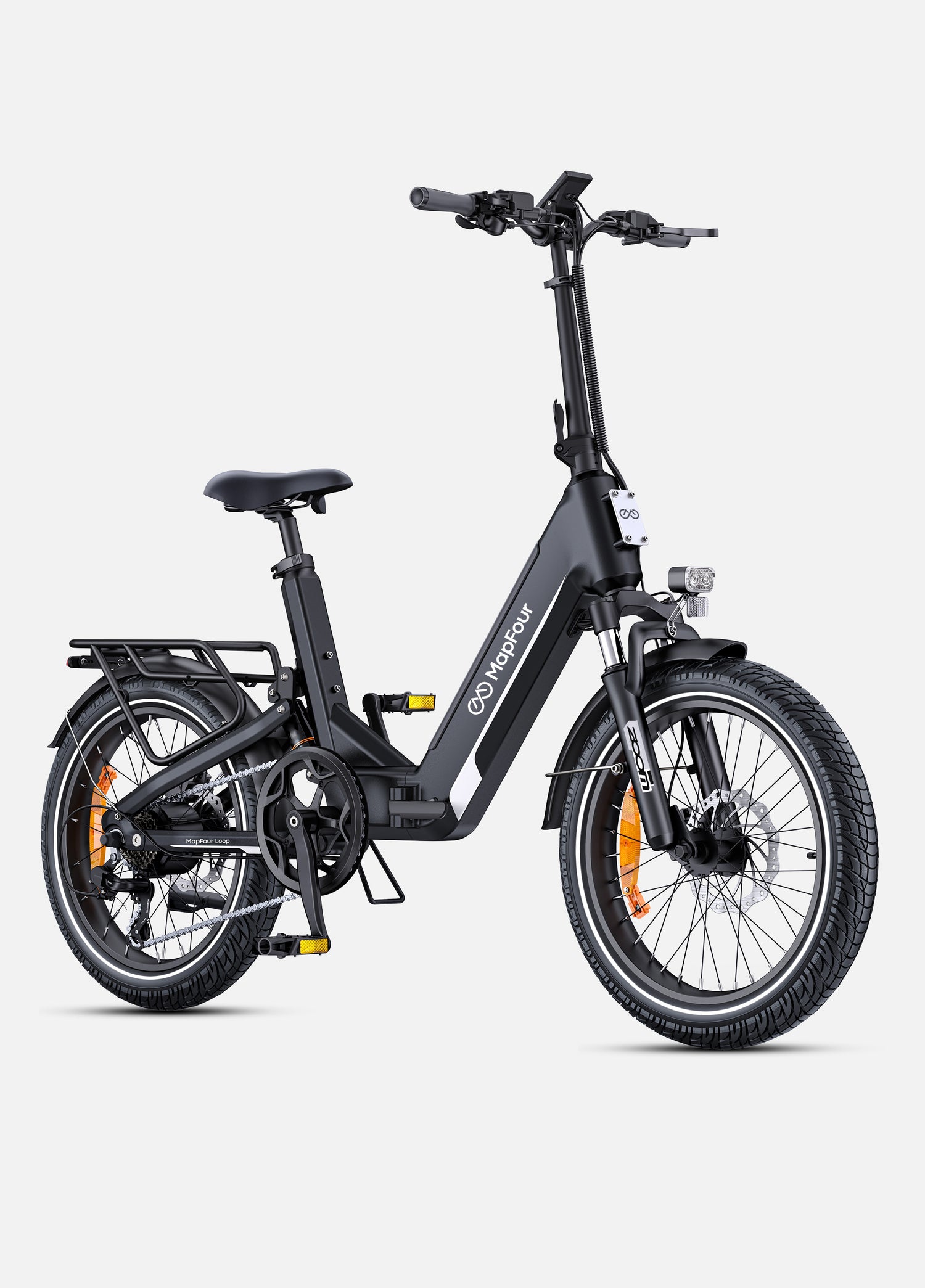

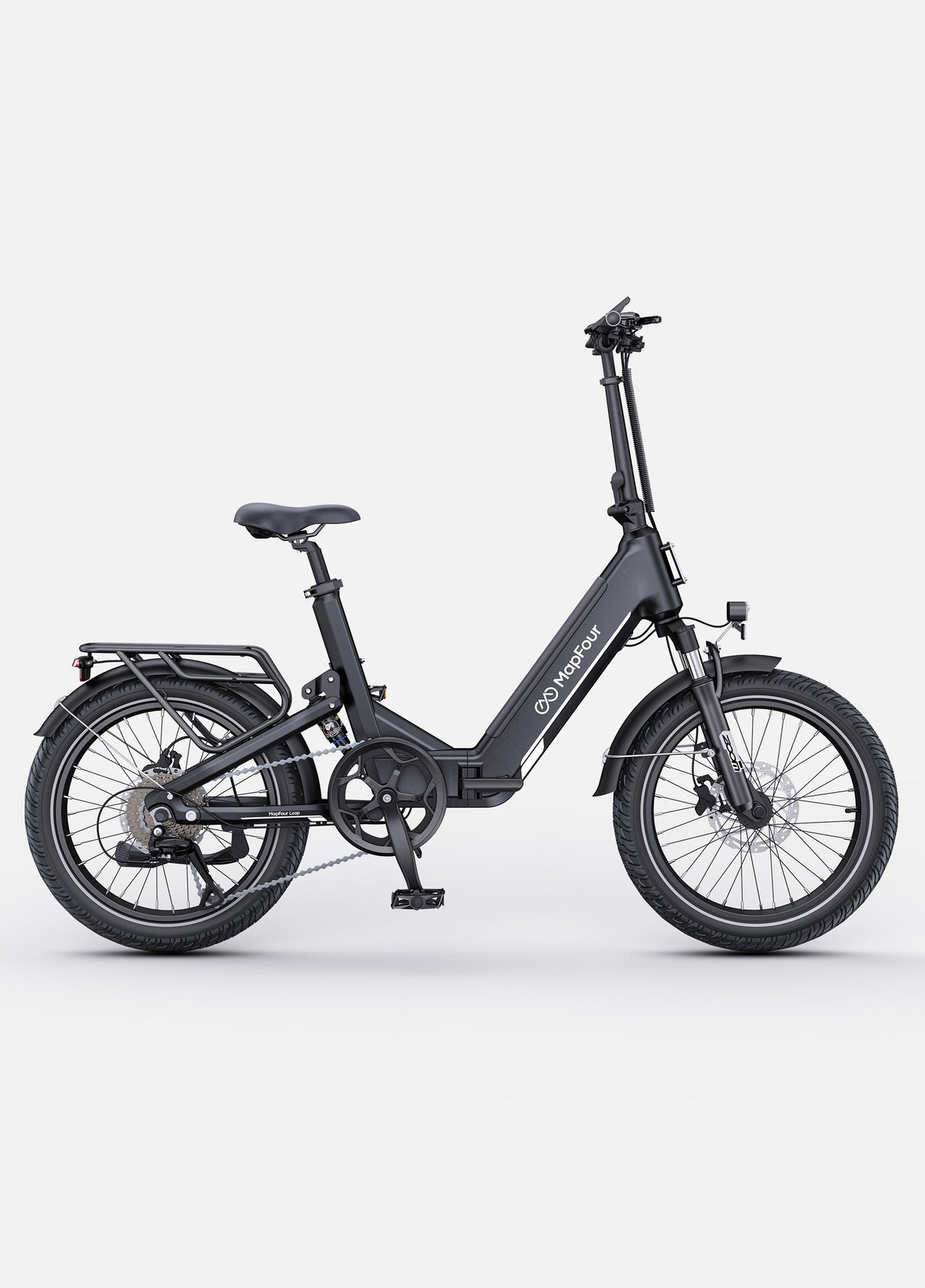

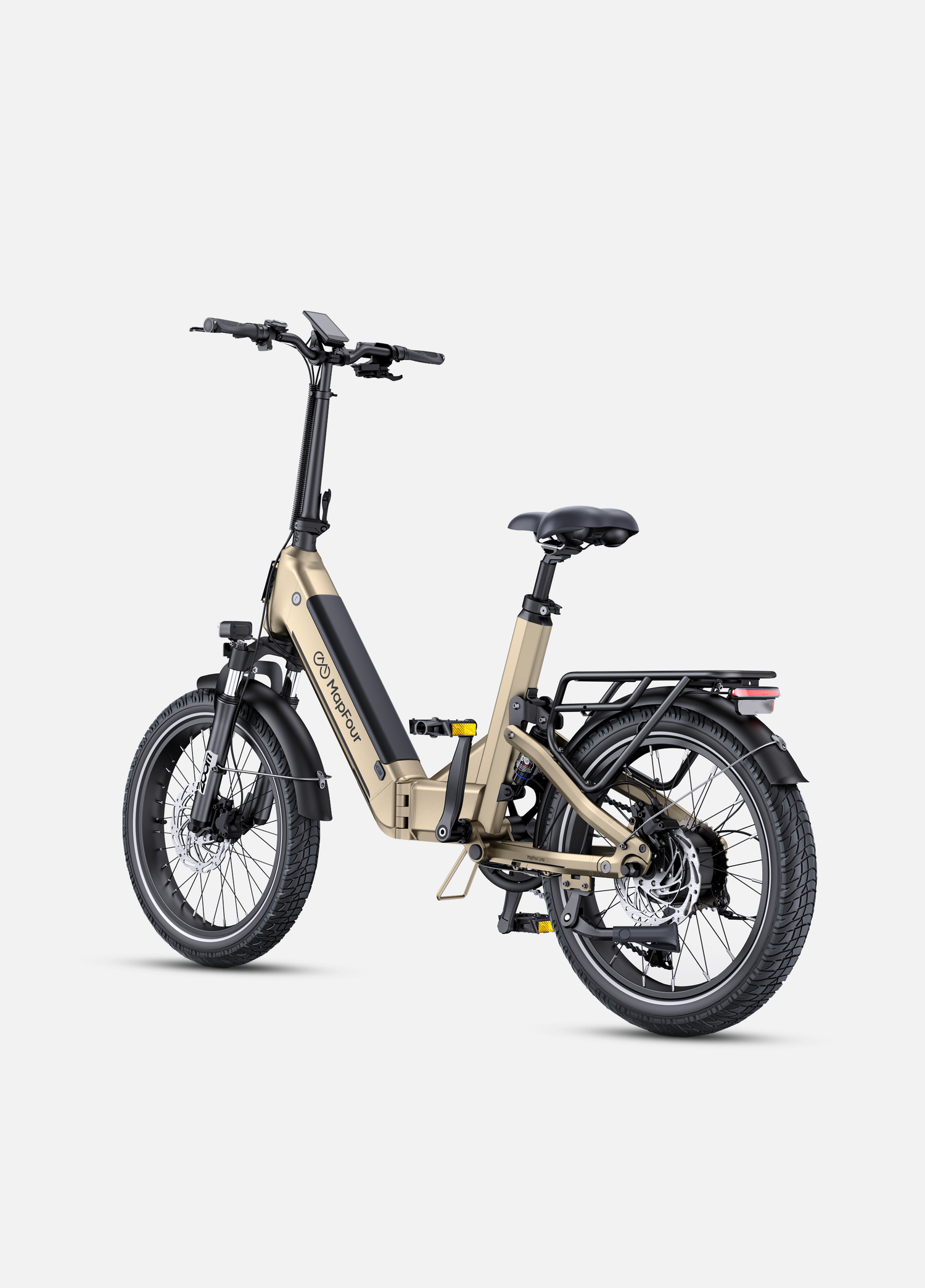

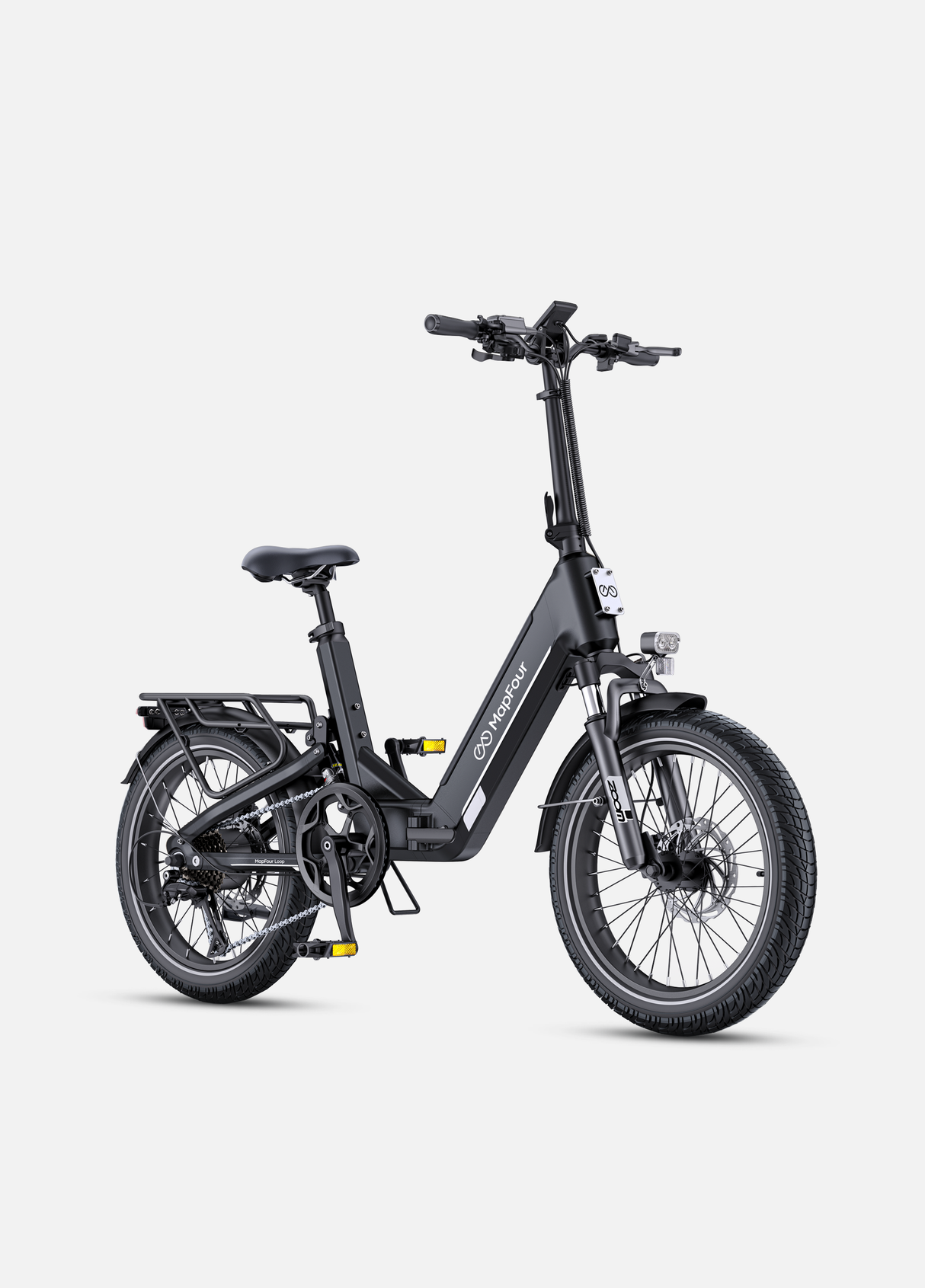

Loop

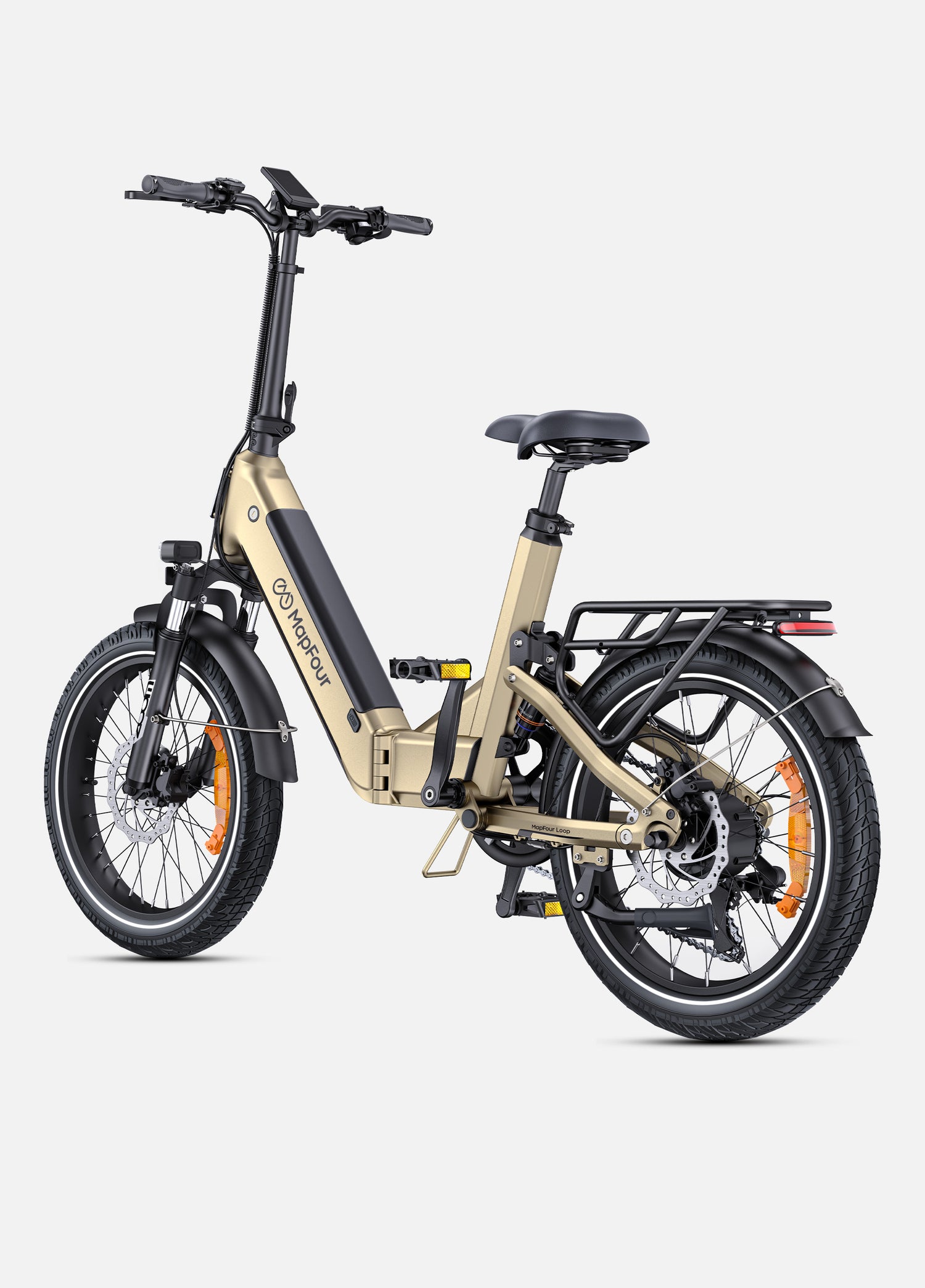

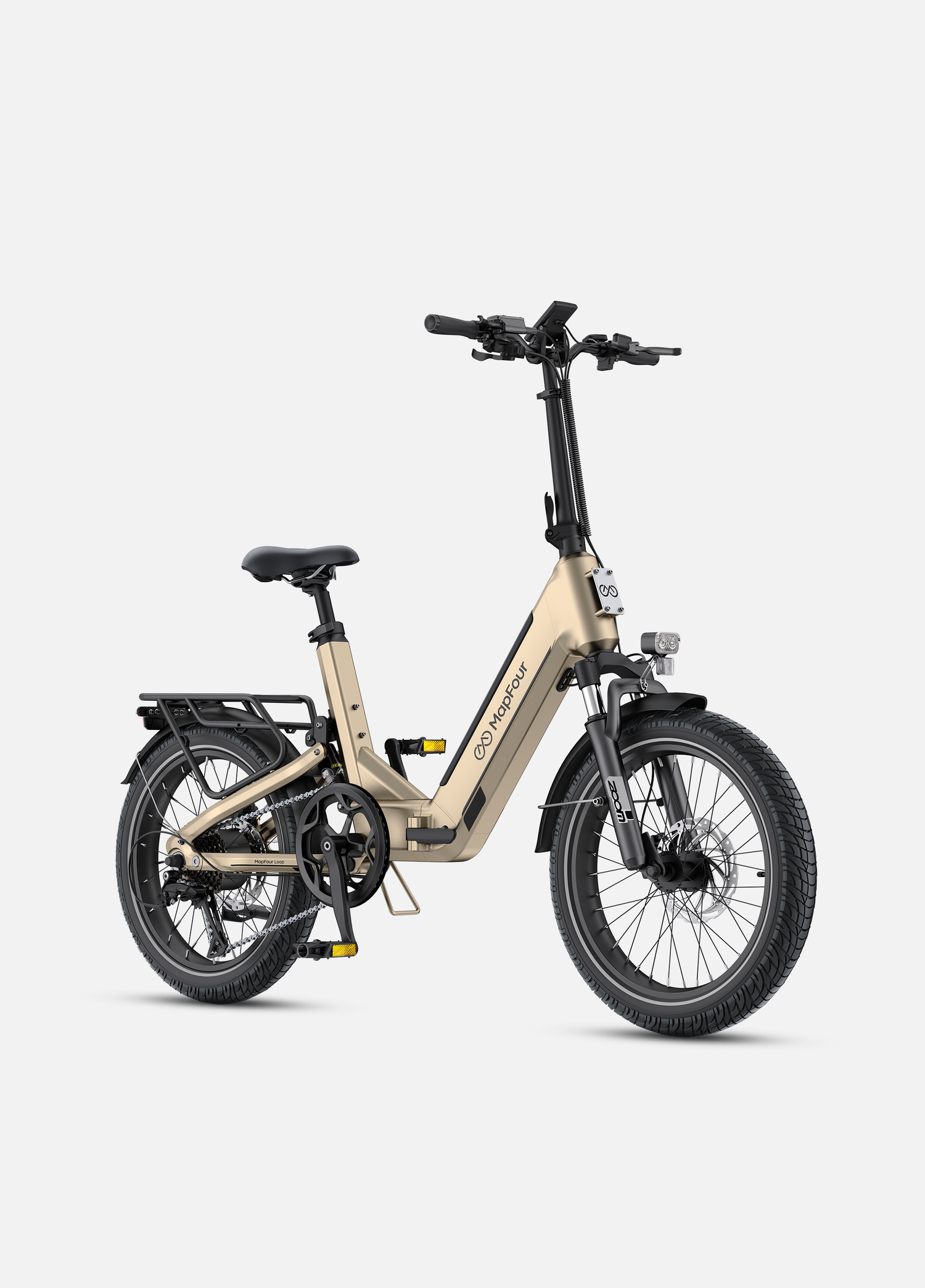

250W 75Nm Boost Power Full Suspension Compact E-bike

€1.699,00

In stock

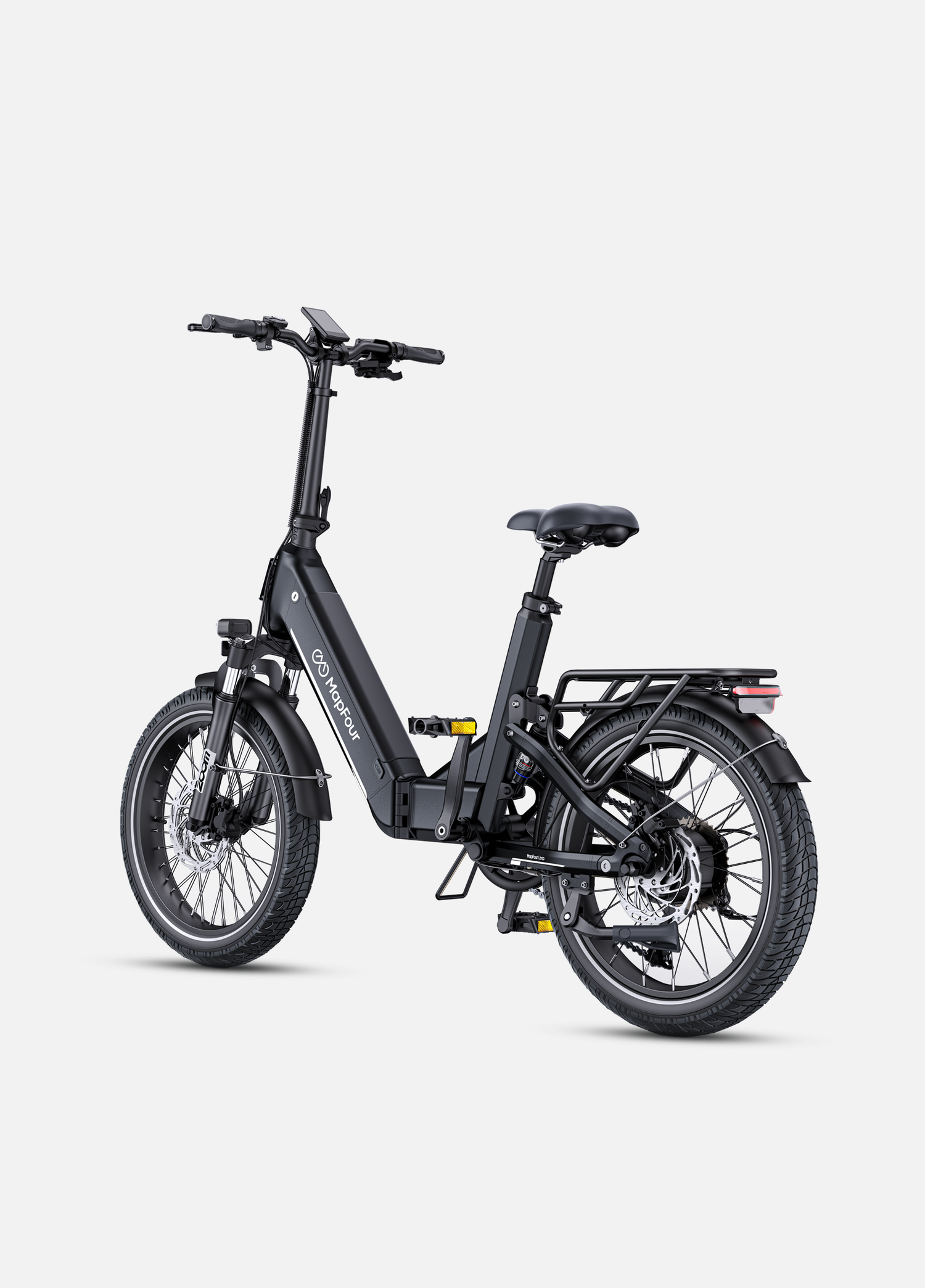

Color: Black

Product variants

Full Suspension System
8A Fast Charging
720Wh Removable Battery
75Nm Max torque(Hub-Drive)
135KM Max Range
EN 15194 Certified

<tc>Side-By-Side Comparison</tc>

A table for comparing 3 products
Product facet	Loop	Cube COMPACT HYBRID 500	ENGWE L20 Boost
Price
Price	€1699	€2599	€1149
Suspension
Suspension	Full suspension	/	/
Charging Hour
Charging Hour	2H	/	6.5H
Torque
Torque	75Nm	65Nm	75Nm
Motor
Motor	250W Hub Motor	250W Mid-drive Motor	250W Hub Motor
Battery capacity
Battery capacity	720Wh	500Wh	624Wh
Range
Range	135 km	/	126 km
Tires
Tires	20" × 3.0"	20" × 2.4"	20" × 4.0"
Transmission
Transmission	Shimano 8-speed	Shimano 10-speed	Shimano 7-speed

Engineered for Performance and Comfort

Hydraulic Brakes

Advanced hydraulic braking system delivers precise, effortless stopping power, ensuring safety and control on any terrain.

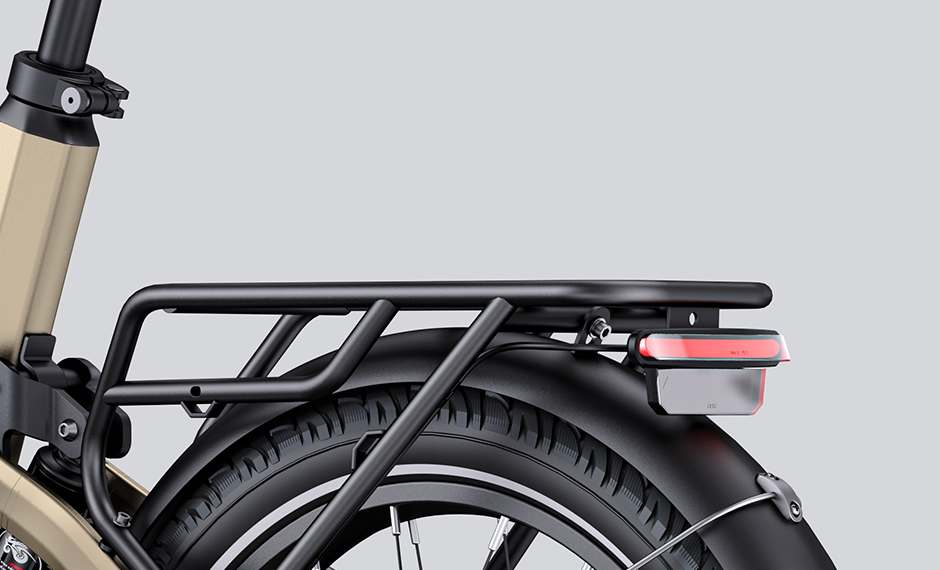

Rear rack

Sturdy, spacious rear rack let you carry groceries, gear, or essentials with ease, making daily errands effortless.

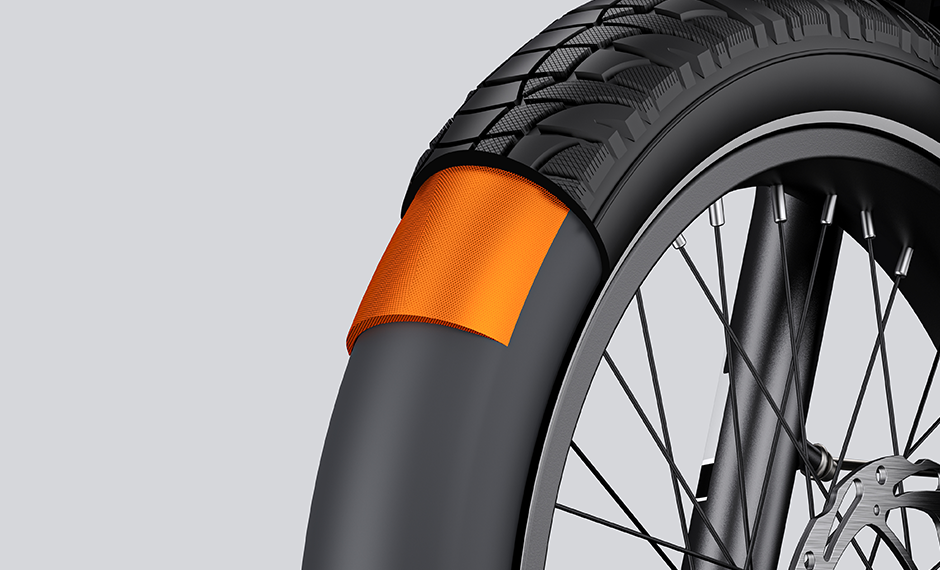

20"×3.0" Puncture Proof Tyre

Enhanced grip, shock absorption, and stability for city streets and trails—plus puncture-resistant tires for a worry-free ride.

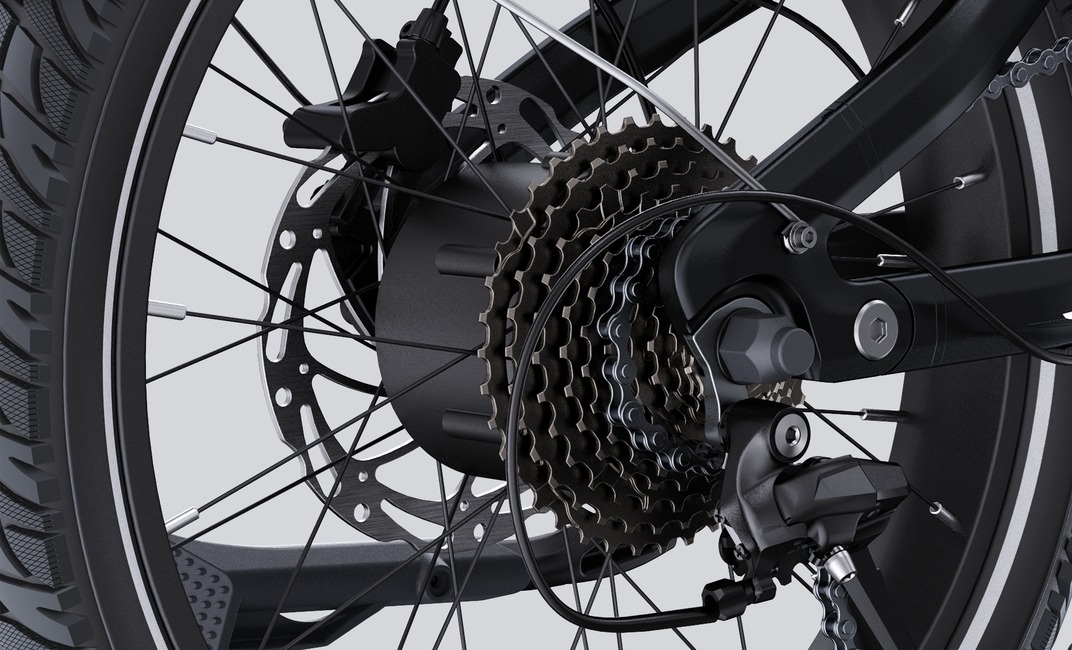

250W hub motor

A reliable 250W hub motor delivers smooth acceleration, efficient energy use, and quiet operation for urban rides and daily commutes.

680mm Swept-Back Handlebar

Ergonomically designed for better wrist alignment, reducing strain and enhancing control, making long rides more comfortable and enjoyable.

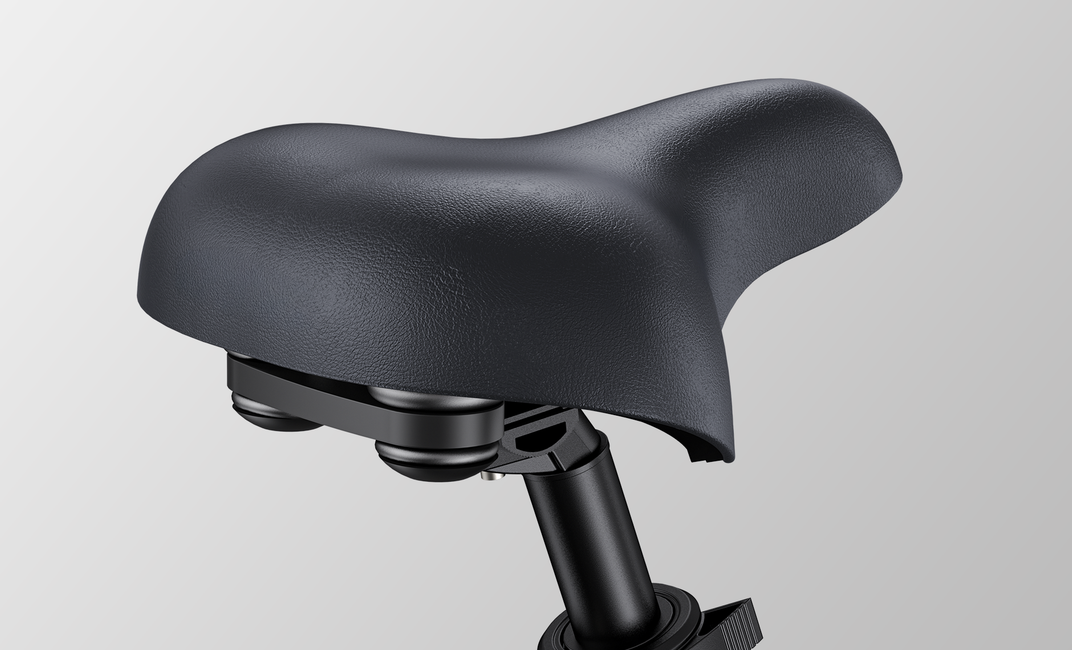

Ergonomic Saddle

Designed with optimal padding and shape to reduce pressure, ensuring maximum comfort and support for both short trips and long commutes.

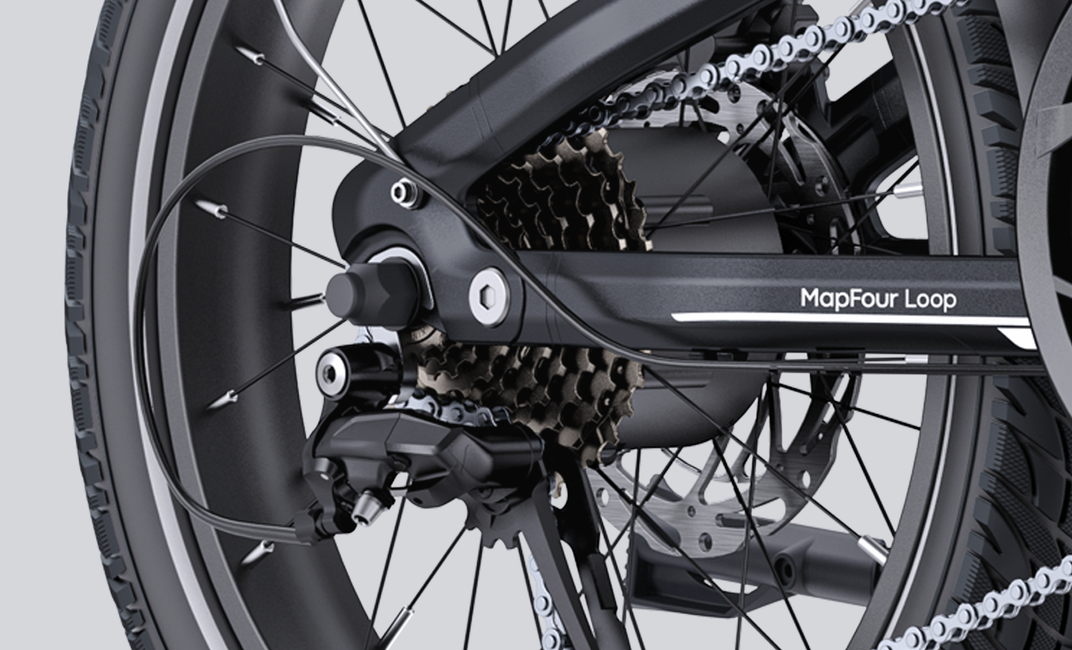

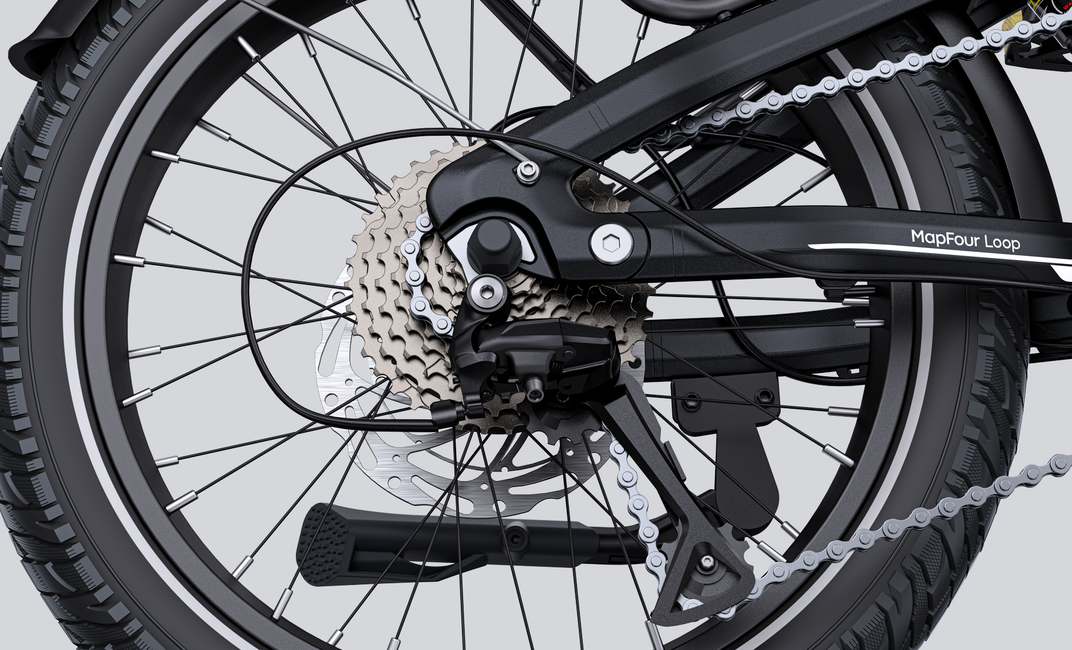

Shimano 8-Speed

Seamlessly shift between seven gears for smooth pedaling, effortless hill climbs, and optimal speed control in any riding condition.

General information
Model	Loop
Maximum load capacity	150kg (330 lbs)
Ride height	5'1" - 6'3" (155cm - 190cm)
Certification	CE (EN15194)
Pedal assist	5 levels
Wrinkles	Yes
Laboratory-tested range	135 km (on a full charge)
Real-world range	120 km (PAS 1) 100 km (PAS 3) 85 km (PAS 5)
Waterproof rating	IPX7 (waterproof cabling) IPX6 (display and lighting) IPX5 (motor and controller) IPX4 (battery compartment)
Trail terrain	Asphalt roads and cycle paths gravel paths sandy beaches and grassy areas Country roads and paved paths
Bicycle weight	33.2 kg (73.2 lbs)
Gross weight	approx. 42 kg (92.6 lbs)
Frame set
Frame material	6061 aluminum alloy, internal battery, step-through design
Frame design	Compact, full suspension
Fork	ZOOM hydraulic, adjustable lock, aluminum and iron
Rear suspension	30 mm travel
Tires	20" × 3,0" Urban Hybrid tires
Puncture protection	3 mm anti-puncture protection layer
Wheels	20 inch, 12-gauge spokes, 36 holes, double-walled aluminum, black
Motor	48V hub motor
Maximum torque	75 Nm
Support system	Torque sensor
Battery	48 V, 15 Ah (720 Wh), Samsung cells, with BMS
Display	3.5-inch LED color display, developed by Mapfour, centrally positioned, with Bluetooth
Mapfour App	App control available
Charger	54.6 V, 8 A output
Front light	30 lux with electric horn and K-mark
Rear light	Lights up automatically when braking or shaking.
Brake type	Tektro hydraulic, double piston
Disc rotor	Tektro 180 mm front and rear
Chain	KMC e8s AntiRust, 116 links
Chainring	52T
Crank	170 mm
Rear derailleur	Shimano Altus 8-speed, SL-M310
Shift lever	Shimano Altus 8-speed, SL-M5130-8R
Cassette	8-speed
Pedals	Boron steel, non-folding
Saddle	Selle Royal saddle
Seatpost	10-way adjustable
Handlebars	680 mm width
Handle	Foldable
Seatpost clamp	Quick release

Ride height	155 cm – 190 cm
Maximum load capacity	150 kg (330 lbs)
Package dimensions	140 × 27 × 64 cm

A-handlebar height	110.2 cm
B-Total length	168.0 cm
C-range	47.2 cm
D-overhang height	38.0 cm
E-wheelbase	112.5 cm
F-Minimal saddle height	82.0 cm
Maximum saddle height	102.0 cm

A – Height	75 cm
B – Length	100 cm
C – Width	51 cm

Loop E-Bike	*1
Battery	48 V, 13.5 Ah Lithium-ion*1
Charger	54.6 V, 8 A *1
Pedals	*2
Front and rear mudguards	*1
Luggage rack	*1
Bicycle stand	*1
Assembly tool	*1
Operating instructions	*1
