NEW RELEASE

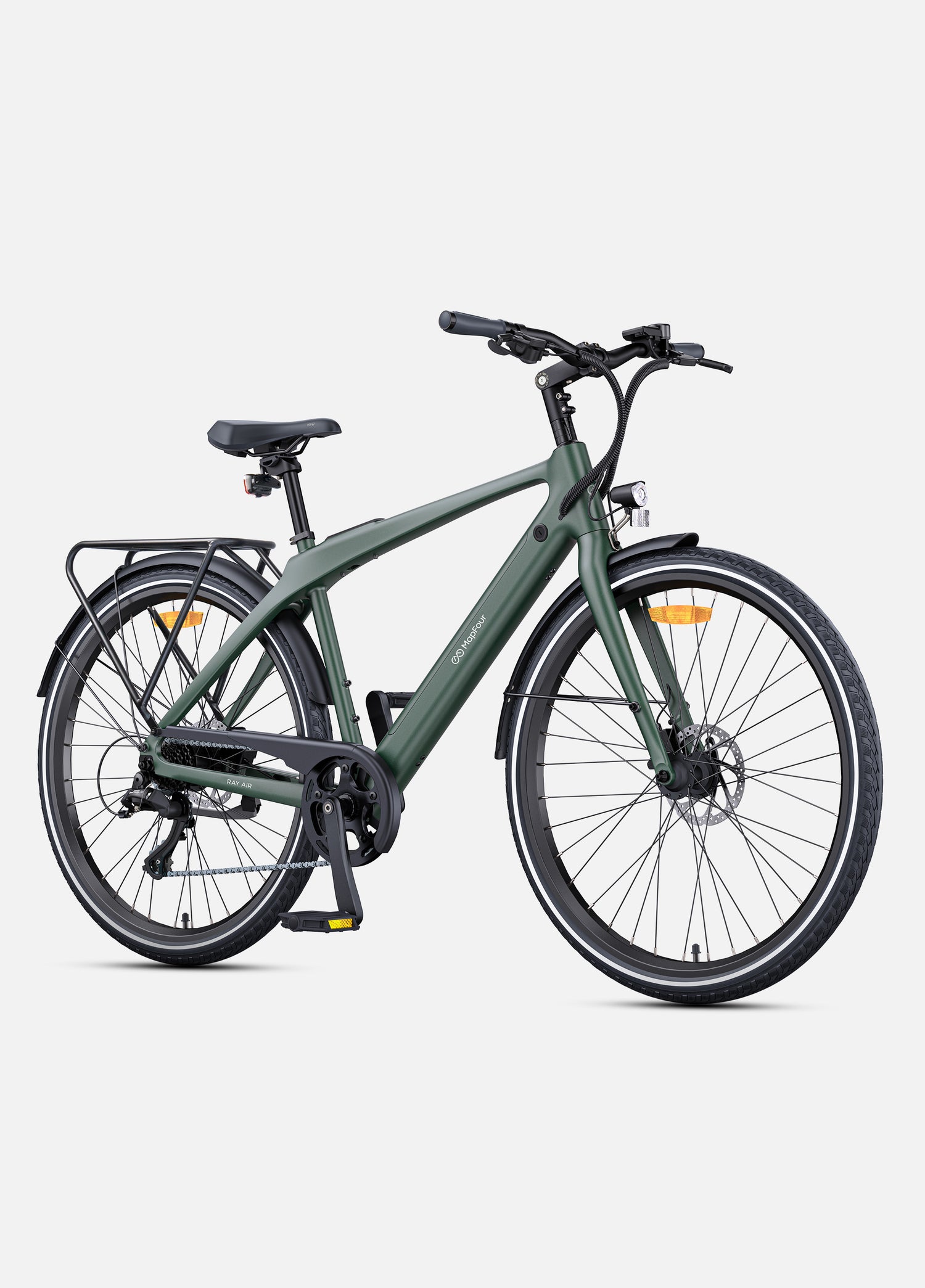

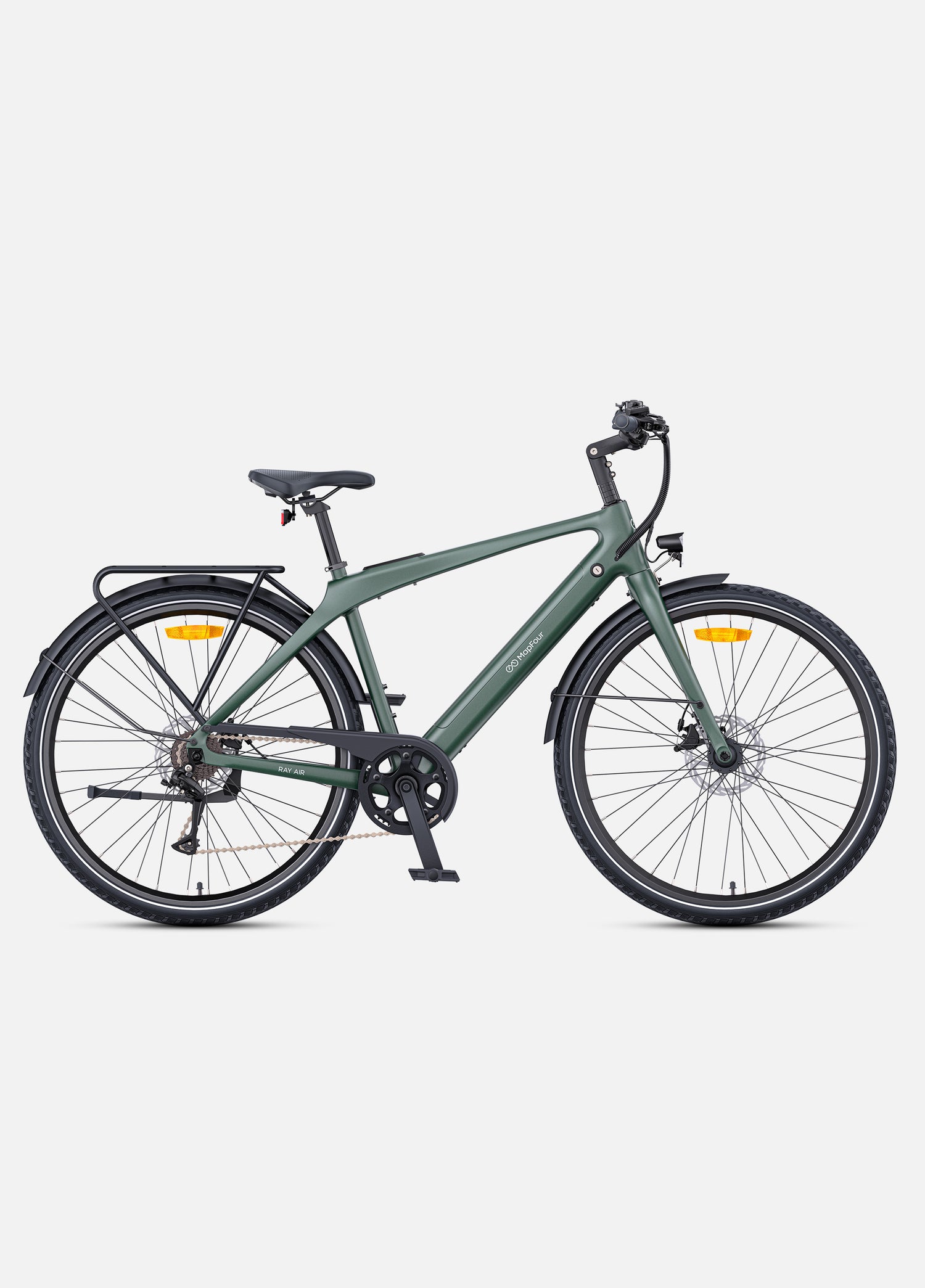

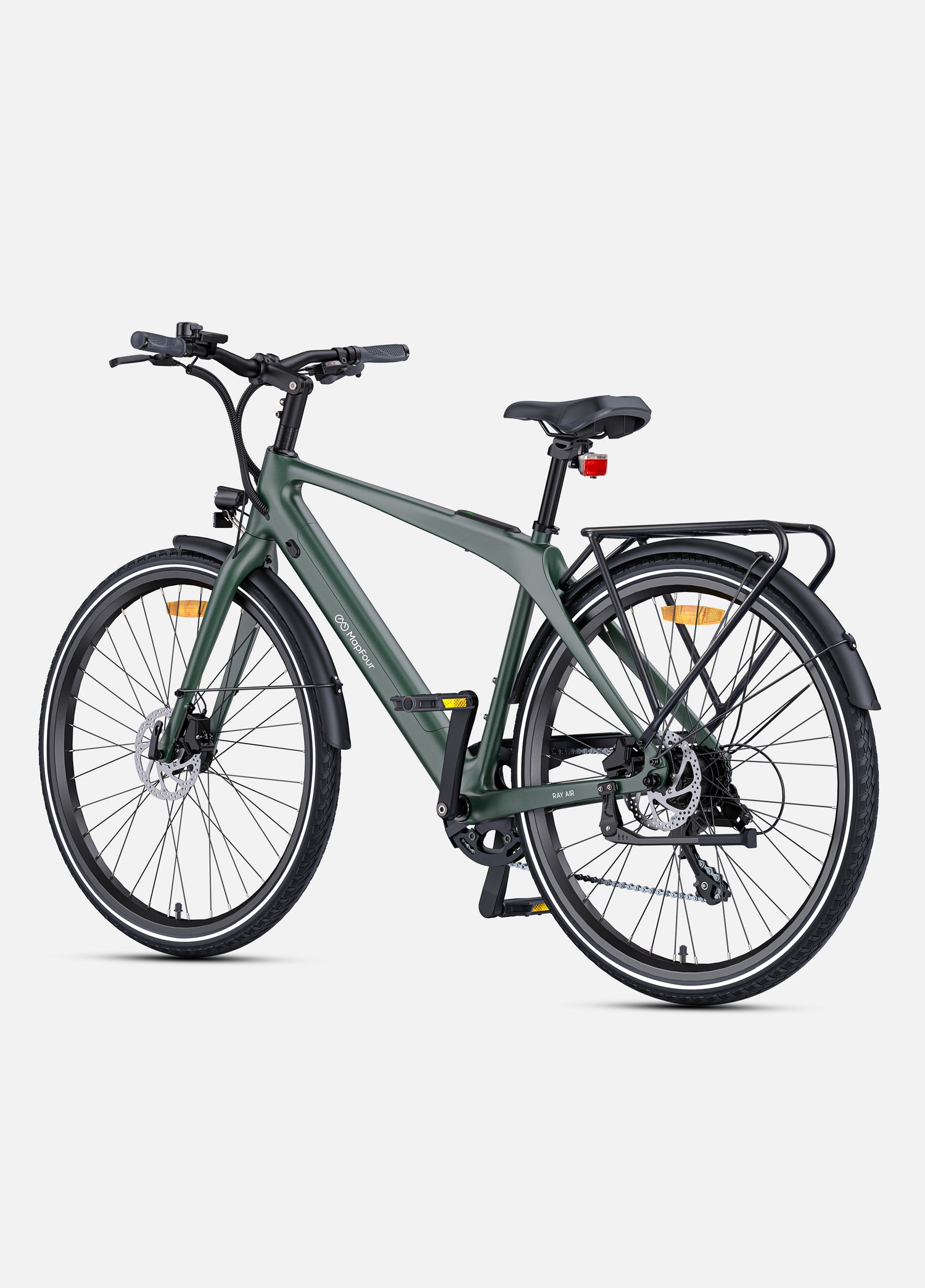

Ray Air

250W Ultra-lightweight 100KM Long Range Carbon Fiber City E-bike

€1.999,00

In stock

Style

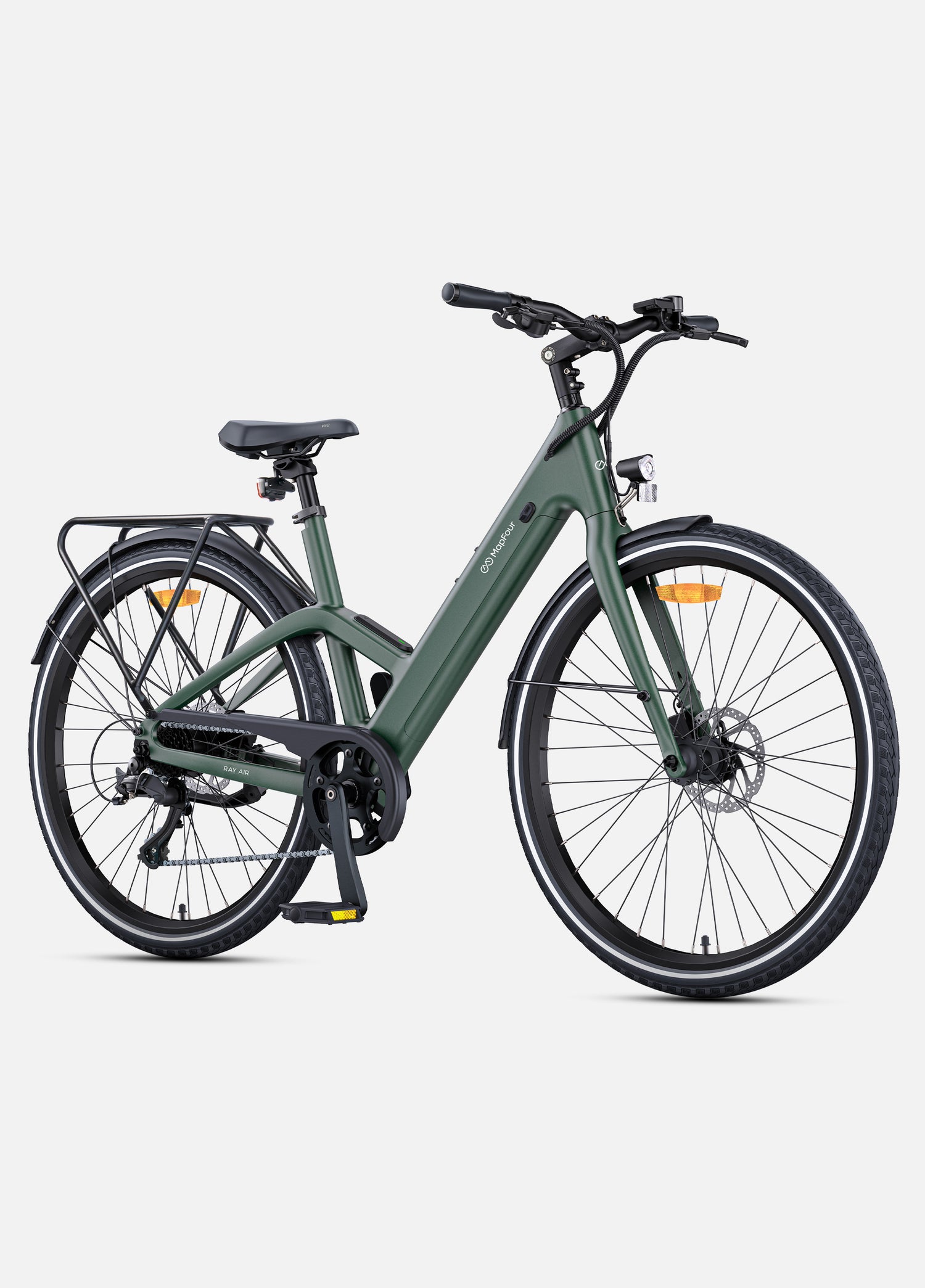

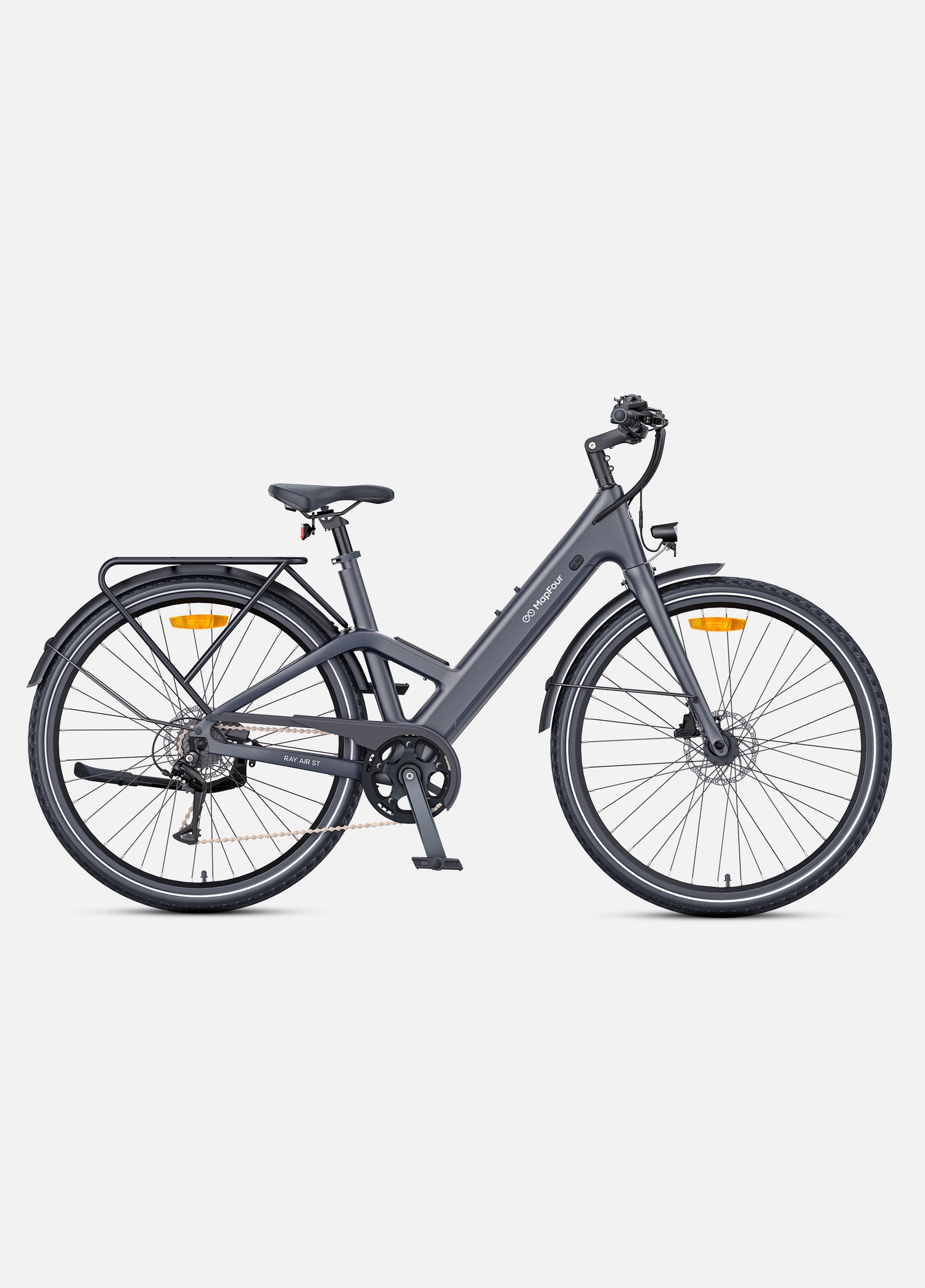

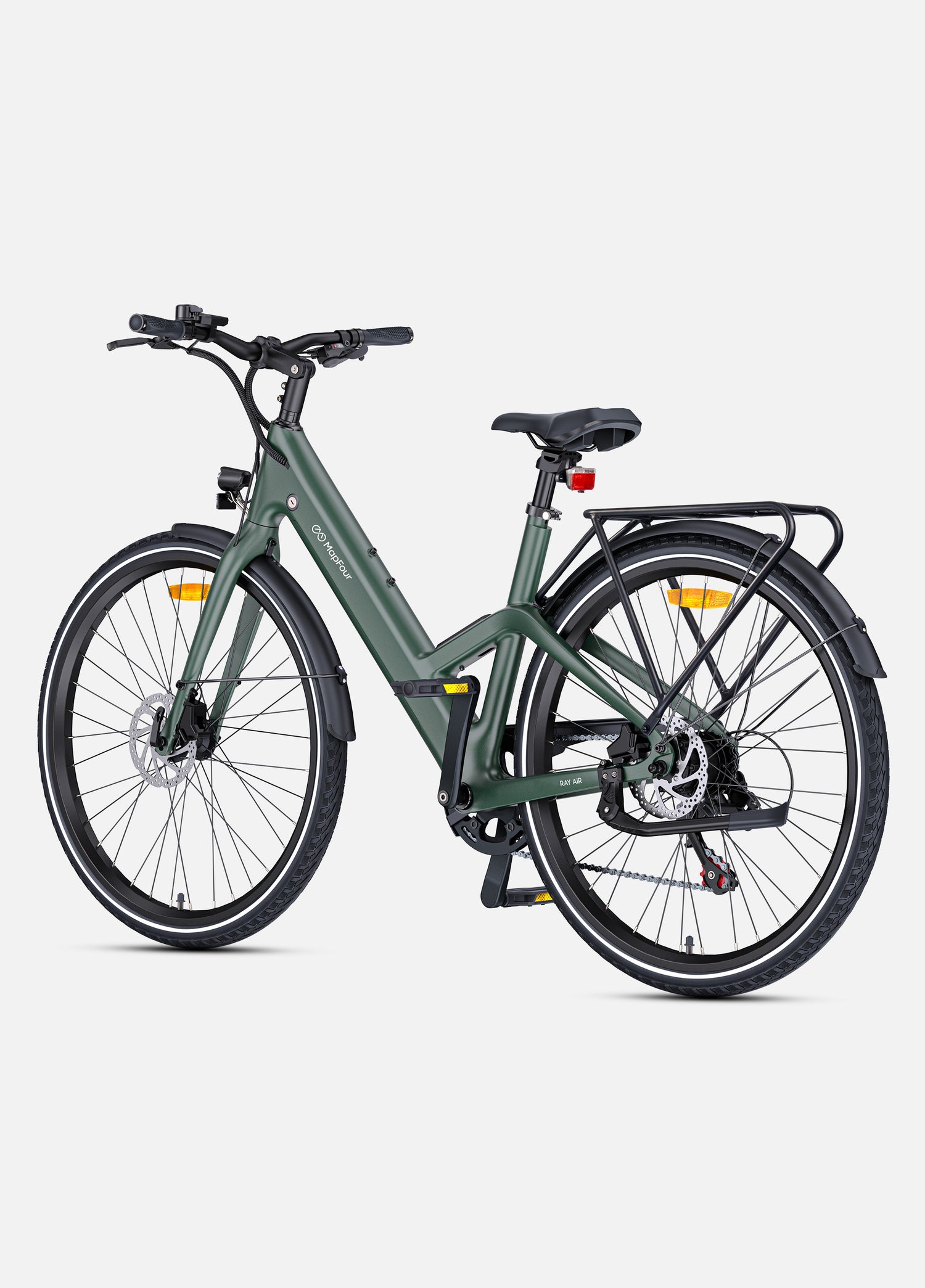

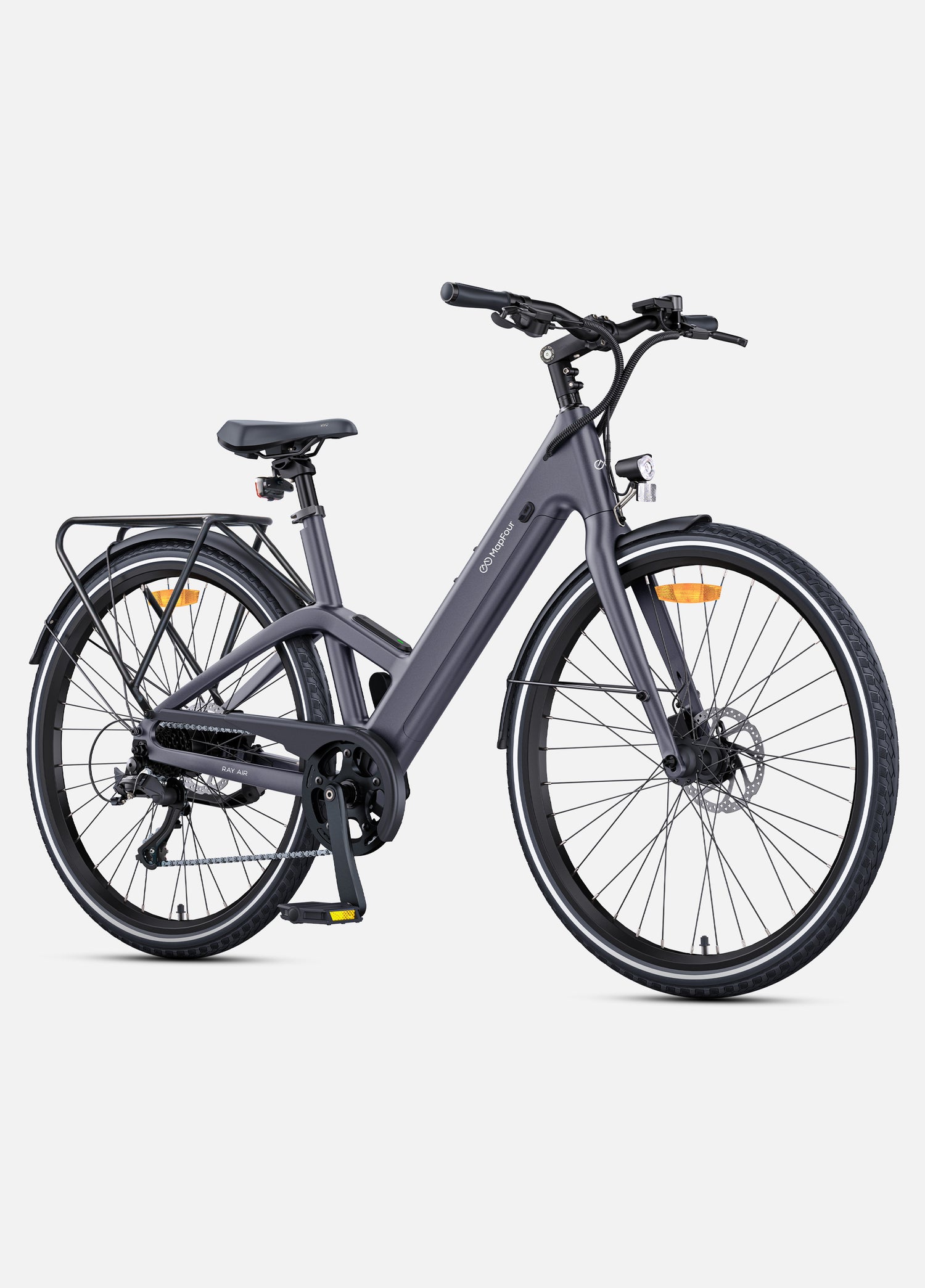

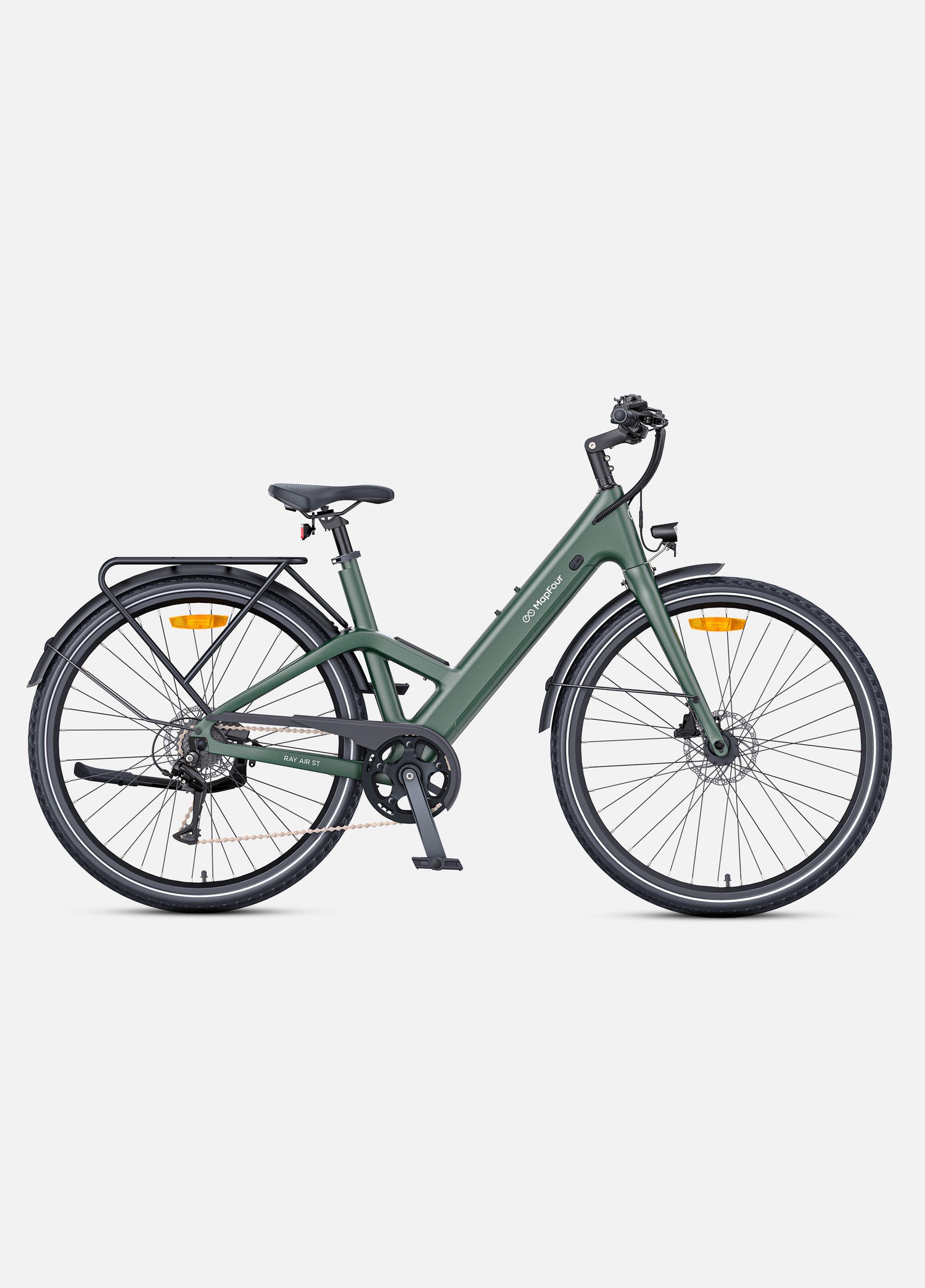

Ray Air Ray Air ST

Color: Ink Green

Product variants

19.1kg Ultra Lightweight*
100km Long Range
Carbon Frame
Motion Detection
GPS Tracking
Removable Samsung Battery

<tc>Why Ray Air Stands Out</tc>

A table for comparing 3 products
Product facet	Ray Air	Tenways CGO600pro	Cube Editor Hybrid Pro 400X
Price
Price	€1,999	€1,799	€2,299
Frame
Frame	Carbon Fiber	Aluminum	Aluminum Carbon fork
Weight
Weight	19.1kg	16kg	17.2kg
Torque
Torque	40Nm	40Nm	55Nm
Motor
Motor	250W Motor	250W Motor	250W Motor
Battery capacity
Battery capacity	360Wh	360Wh	400Wh
Range
Range	100km	100km	/
iOT
iOT	Motion detection Geo-fencing GPS tracking	/	/
Tires
Tires	700c	700c	700c
Transmission
Transmission	Shimano 8-speed	Single speed	Shimano 10 speed

IT'S ALL IN DETAILS

Torque Sensor

Delivers smooth and responsive pedal assist by precisely measuring your pedal force for a natural ride.

Shimano 8-Speed

Seamlessly shift through 8 speeds, offering versatility for various terrains and riding conditions.

19.1kg Lightweight

Ultra-light design enhances agility and ease of handling, perfect for urban commuting.

700c Tires

Built for speed and stability, providing a smooth ride on diverse urban surfaces.

Solar Taillight

Enjoy eco-friendly performance with a solar-powered taillight.

Tektro Hydraulic Brake

Reliable and precise stopping power with low maintenance for enhanced safety.

Brakes	Tektro hydraulic disc brakes, 160 mm front and rear
Gear system	Shimano ACERA, 8-speed
Mudguards	Plastic
Bicycle weight	19.1 kg (42.1 lbs)
Gross weight	27.4 kg (60.4 lbs)
Material	Carbon fiber frame
Fork	Aluminum fork
Engine	MIVICE M070
Sensor	Torque sensor
Maximum torque	40 Nm
Tires	700 × 38C spoked tires
Lighting	Front and rear lights
Battery	36 V 10 Ah SAMSUNG removable lithium-ion battery
Maximum speed	25 km/h
Range	up to 100 km (PAS Level 1)
Charging time	approx. 5–8 hours (depending on usage and battery charge level)
Maximum climbing ability	10°
Display	TFT color display

Brakes	Tektro hydraulic disc brakes, 160 mm front and rear
Gear system	Shimano ACERA, 8-speed
Mudguards	Plastic
Bicycle weight	19.2 kg (42.3 lbs)
Gross weight	28.1 kg (61.9 lbs)
Material	Carbon fiber frame
Fork	Aluminum fork
Motor	MIVICE M070 rear hub motor
Sensor	Torque sensor Maximum torque
Tires	700 × 38C spoked tires
Lighting	Front and rear lights
Battery	36 V 10 Ah SAMSUNG removable lithium-ion battery
Maximum speed	25 km/h
Range	up to 100 km (PAS Level 1)
Charging time	approx. 5–8 hours (depending on usage and battery charge level)
Maximum climbing ability	10°
Display	TFT color display

Recommended height	160–195 cm (5.25–6.4 ft)
Maximum payload	120 kg (264.5 lbs)
Packaging dimensions (L × W × H)	149 × 23 × 83 cm

A – Wheelbase	110.5 cm
B – Total length	181 cm
C – Reach	44 cm
D – Standover height	75.5 cm
E – Minimum saddle height	82.5 cm
F – Maximum saddle height	95 cm
G – Minimum handlebar height	105 cm
H – Maximum handlebar height	112 cm

Recommended height	155–188 cm (5.1–6.2 ft)
Maximum payload	120 kg (264.5 lbs)
Packaging dimensions (L × W × H)	147 × 23 × 83 cm

Ray Air

250W Ultra-lightweight 100KM Long Range Carbon Fiber City E-bike

Spec

Size

What's in the Box?

FAQ

Best Choice for First Carbon E-bike

<tc>Why Ray Air Stands Out</tc>

IT'S ALL IN DETAILS

Torque Sensor

Shimano 8-Speed

19.1kg Lightweight

700c Tires

Solar Taillight

Tektro Hydraulic Brake

Customer Reviews

EBIKES

DISCOVER

SERVICE

A – Wheelbase	109.1 cm
B – Total length	179.7 cm
C – Reach	42 cm
D – Standover height	75.8 cm
E – Minimum saddle height	84.5 cm
F – Maximum saddle height	100 cm
G – Minimum handlebar height	105 cm
H – Maximum handlebar height	112 cm

E-bike	*1
Battery	36V 10Ah SAMSUNG Lithium-ion battery*1
48V 2Ah charger	*1
Pedals	*2
Front and rear mudguards	*1
Bicycle stand	*1
Assembly tools	*1
User manual	*1
