NEW RELEASE

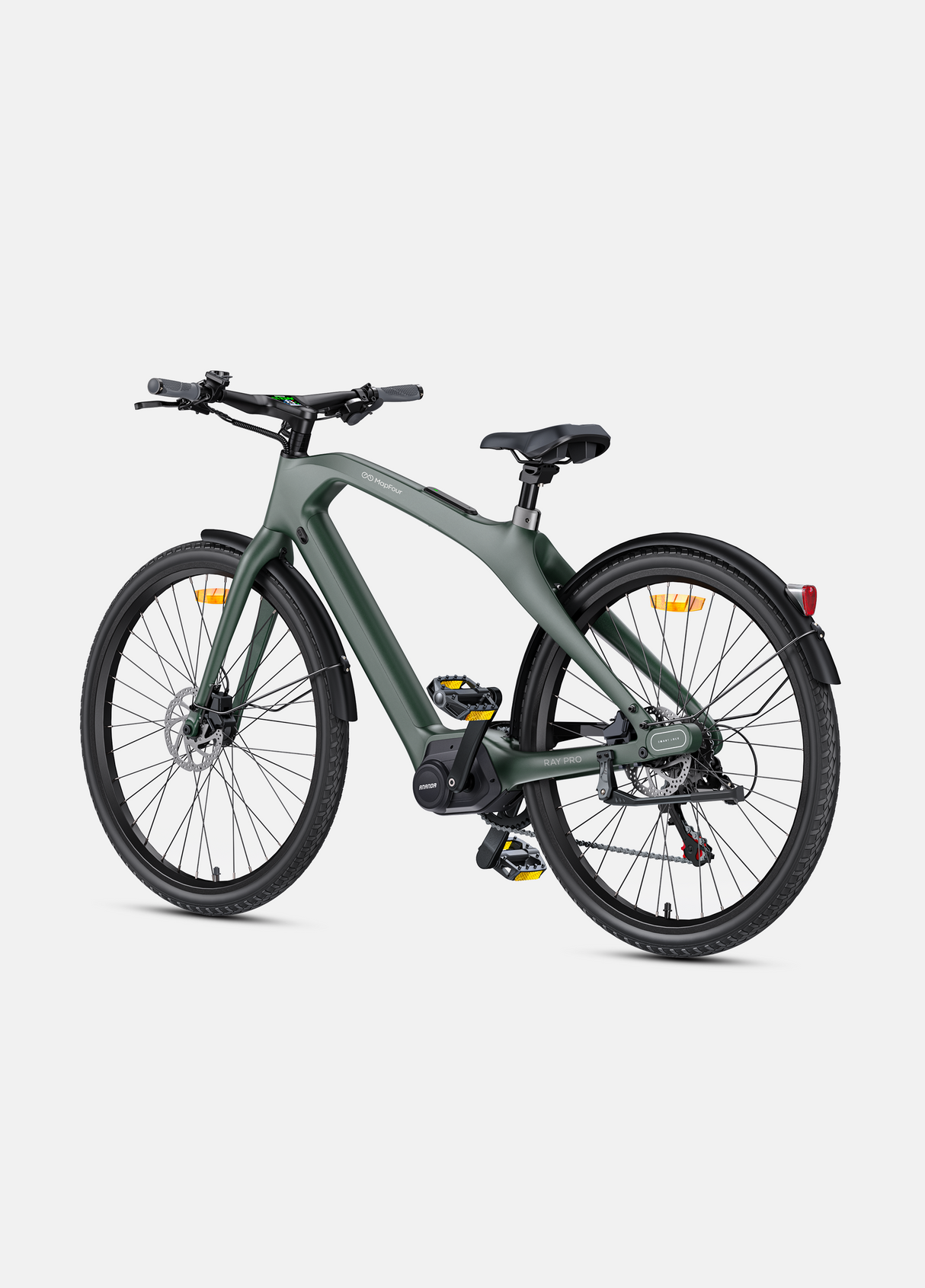

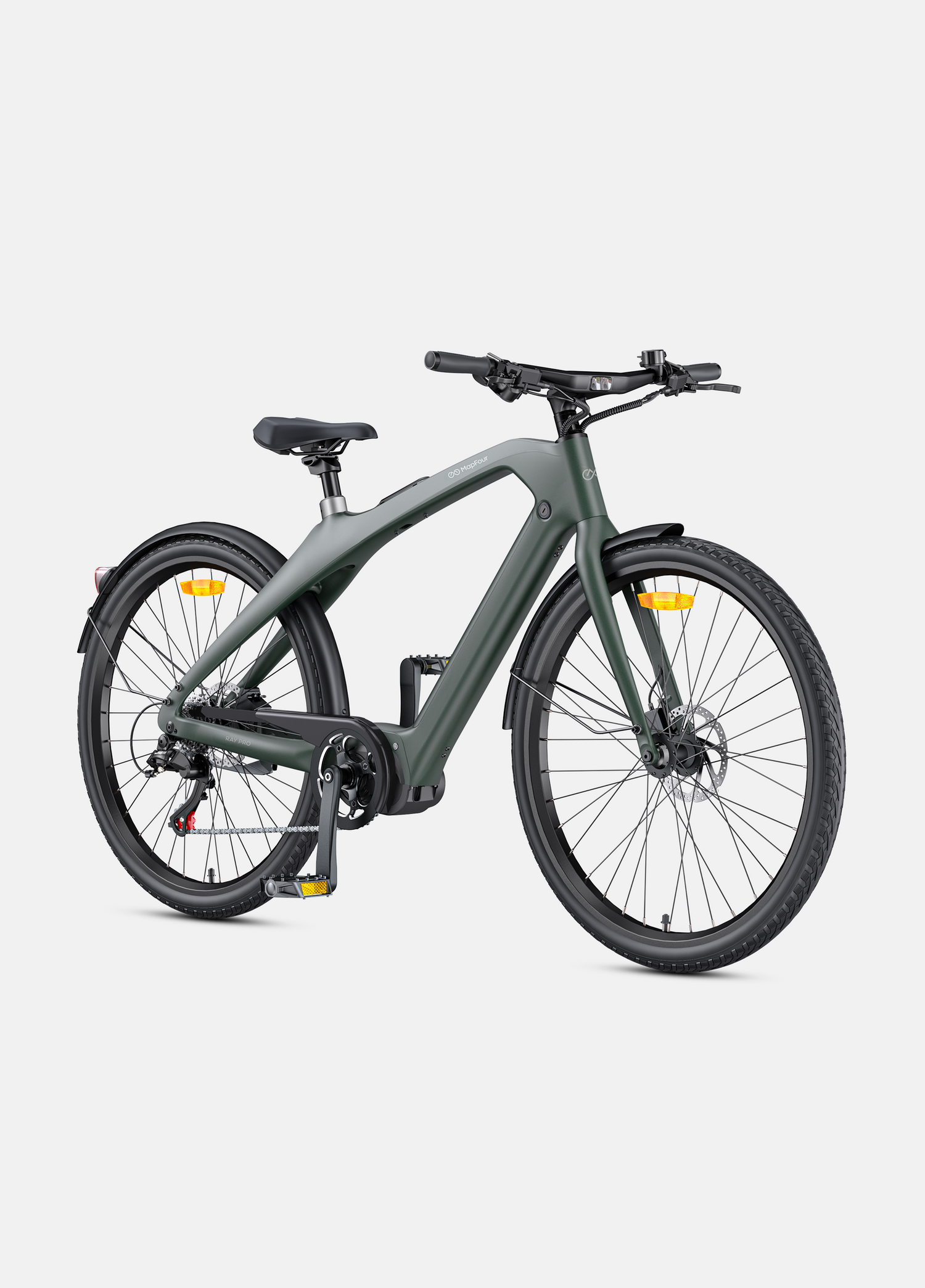

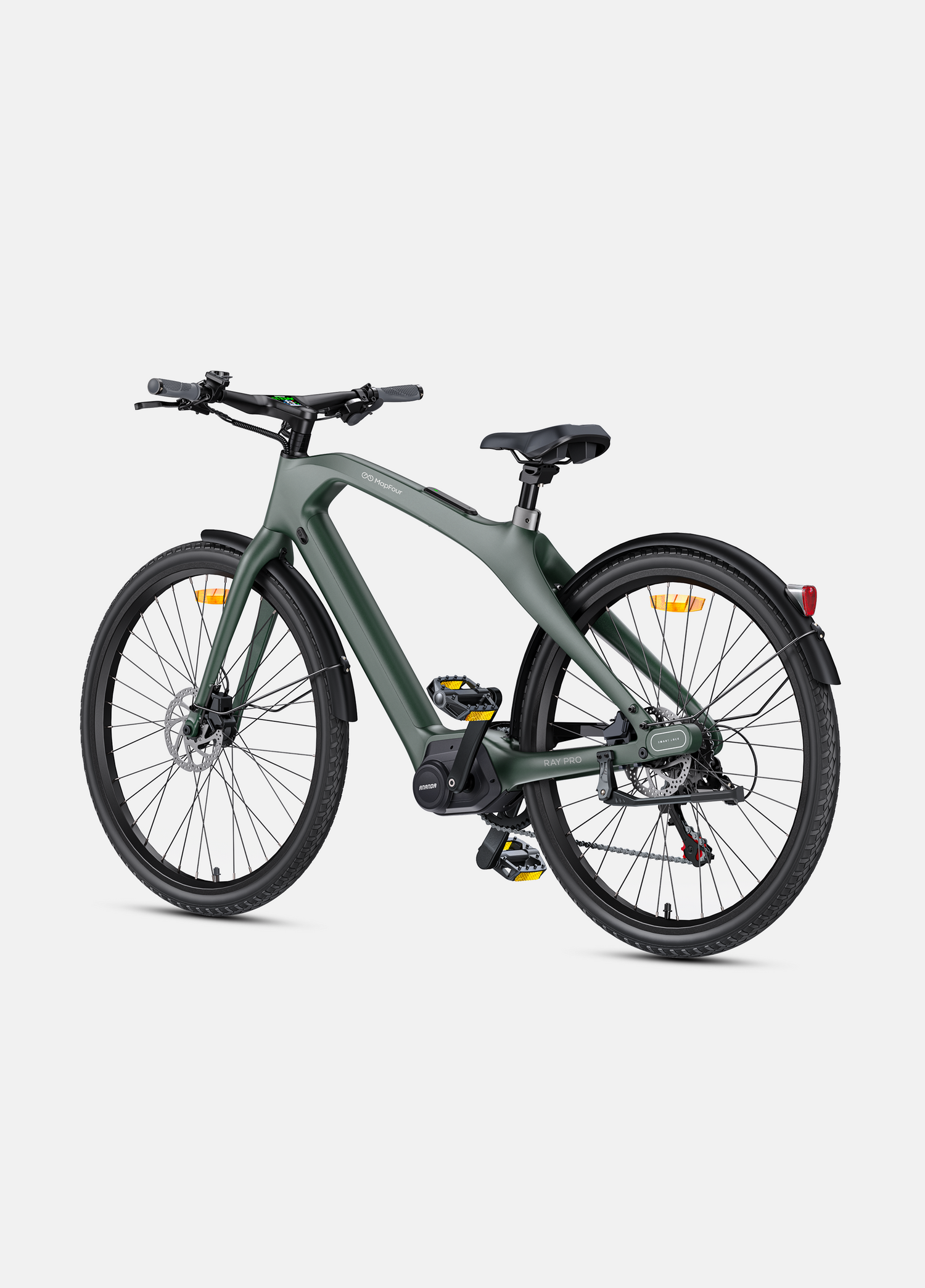

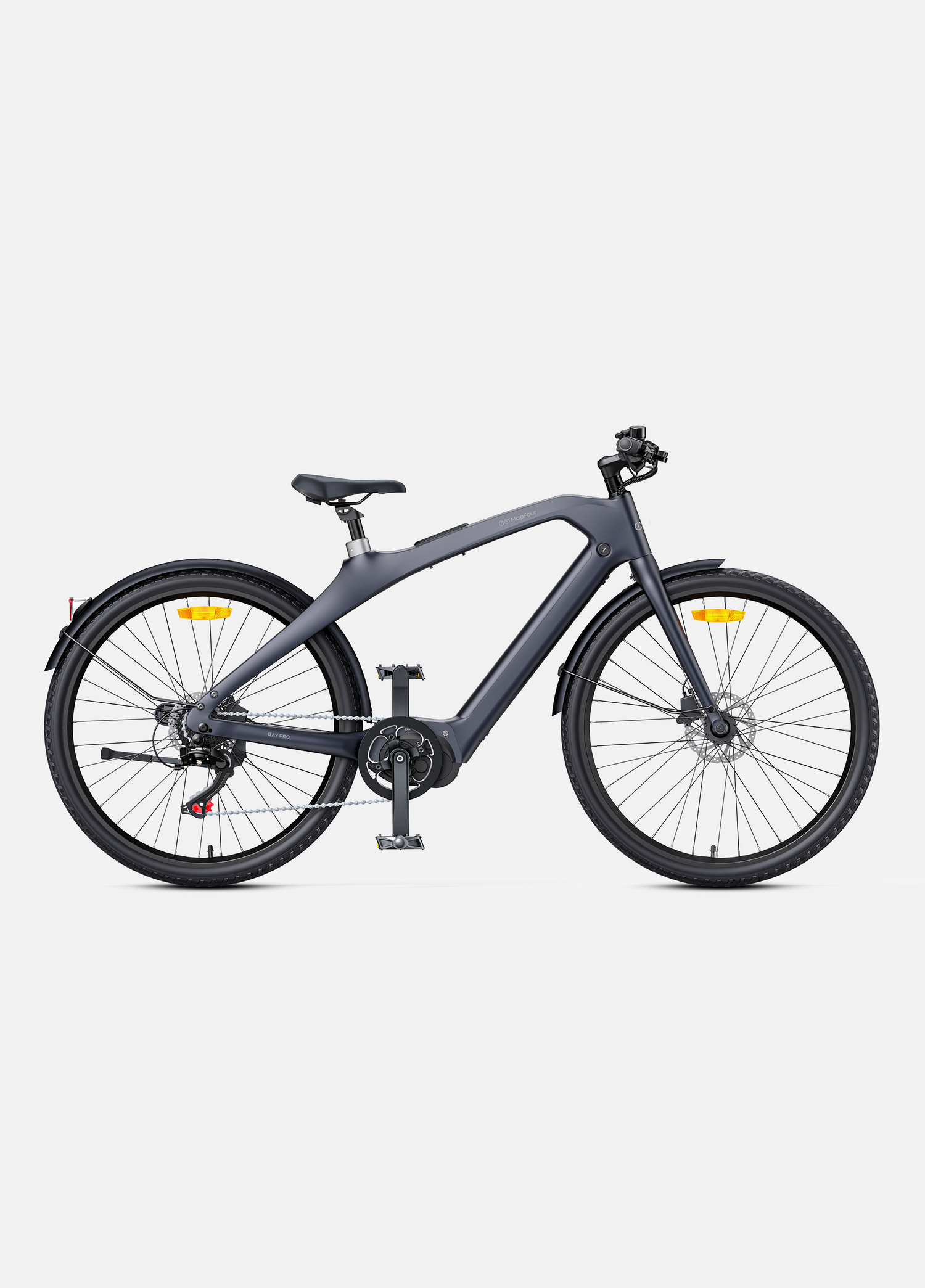

Ray Pro
250W Mid-drive Motor, 80Nm Torque Carbon Fiber City E-bike
Specs
| Material | Carbon Fiber |
| Motor | 250W Ananda Brushless Mid-drive Motor |
| Sensor | Torque Sensor |
| Torque | 80 N.m |
| Tires | 700*42C Spoke Tires |
| Lights | Front & Tail Light |
| Transmission System | SHIMANO CUES 10-Speed |
| Brakes | Tektro 160mm Front & Rear Hydraulic Disc Brakes |
| Battery | 36V 10Ah Removable Lithium-ion Battery |
| Speed | 25 km/h |
| Mileage | 100 km (PAS 1 level) |
| Charging Time | About 1.5-2H (The charging time of the battery depends on the usage of the battery.) |
| Maximum Climbing degree | 10° |
| Display | LED Integrated Display |
| Bike Weight | 19 kg (41.9 lbs) |
| Gross Weight | 30.4 kg (67 lbs) |
Please note: All stated weight numbers have a +/- 3%-5% tolerance. Bike weight includes the battery but excludes all accessories.
Size
| Rider Height | 5.41(ft)-6.2(ft) |
| Payload Capacity | 120KG (264.5lbs) |
| Package Dimensions (LWH) | 153*230*84CM |
| A--Wheelbase | 116.8 cm |
| B--Total Length | 189.5 cm |
| C --Reach | 49.6 cm |
| D--Standover Height | 78.5 cm |
| E--Min Saddle Height | 87.6 cm |
| F--Max Saddle Height | 93.5 cm |
| G--Handlebar Height | 99.5 cm |
Please note: There may be a difference of 0~5 CM between measured and actual data.
What's in the Box?
| Ray Pro E-bike | *1 |
| Battery | 36V 10Ah Lithium-Ion*1 |
| 48V 8Ah Battery Charger | *1 |
| Pedals | *2 |
| Front & Rear Fenders | *1 |
| Bike Kickstand | *1 |
| Assembly Tools | *1 |
| User Manual | *1 |
Please note: The product you receive is based on the option you selected to order.
FAQ
1. Order processing times:
Your order will be shipped from the warehouse closest to your address, with an estimated delivery time of 2 to 10 days.
For more details on delivery locations and costs, please refer to our Shipping Policy.
*Please note: Delivery may not be available to remote areas or islands. For special requests or urgent delivery needs, please contact our customer service team, and we will do our best to accommodate you.
2. Ray Pro User Manual
Please click here to view the User Manual.
(You can find the instructions in additional languages by click here.)

Ray Pro, Most Powerful Mid-drive Carbon City E-bike
-

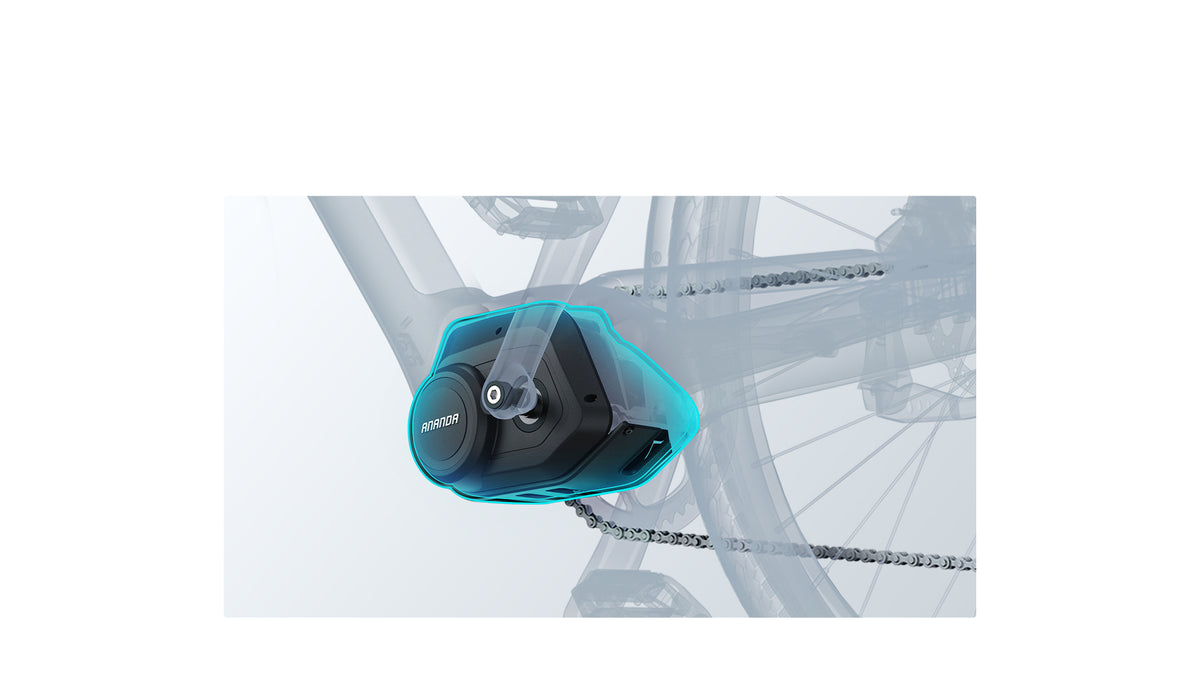

250W Mid-drive Motor
-
80Nm Powerful Torque
-

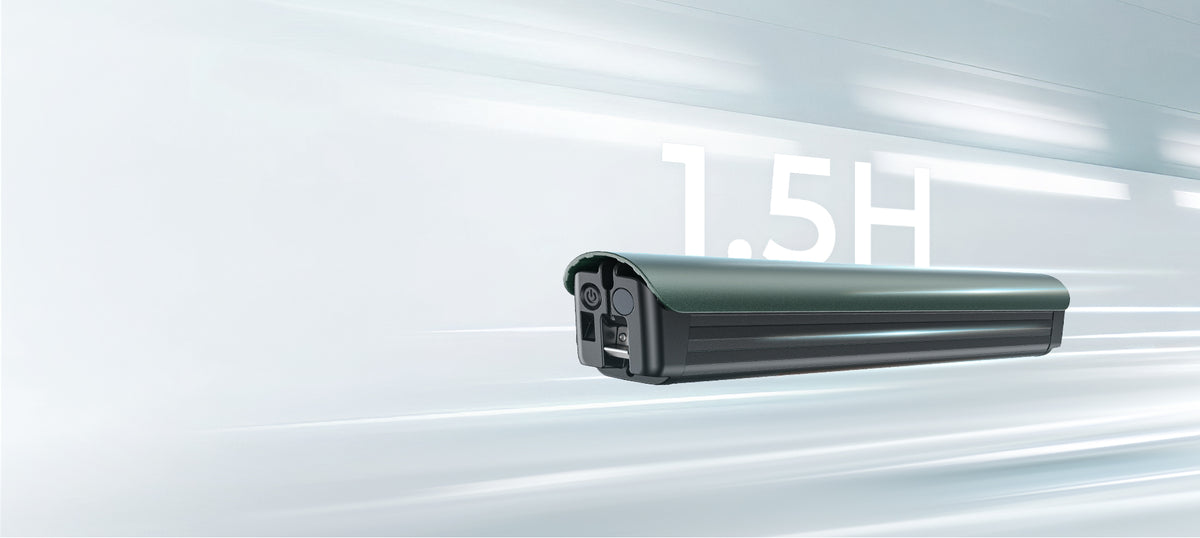

1.5h Fast Charging
-
Anti-theft Module
-
Carbon Frame
-
Removable Battery
-
Smart Lock
Why Ray Pro Stands Out
| Facet |

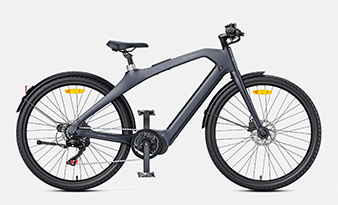

Ray Pro
|

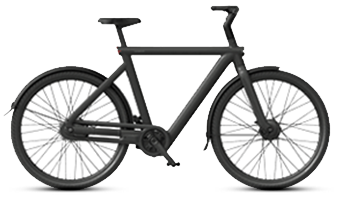

Vanmoof S5
|
Cube Editor Hybrid SLT FE 400X
|
|---|---|---|---|
| Price | |||
| Price | €2,399 | €3,298 | €3,499 |
| Frame | |||
| Frame | Carbon fiber | Aluminum | Aluminium Carbon fork |
| Torque | |||
| Torque | 80Nm | 68Nm | 55Nm |
| Motor | |||
| Motor | 250W Mid Motor | 250W Hub Motor | 250W Mid Motor |
| Battery capacity | |||
| Battery capacity | 36V 10Ah | 487Wh | 400Wh |
| Range | |||
| Range | 100km | 60-150km | / |
| iOT | |||
| iOT | Motion detection | Kick Lock with active-retract pin Integrated Theft Defense Automatic Rider Recognition Manual disarm with backup code Anti-theft nuts and bolts GPS and Bluetooth location tracking | / |
| Charging hour | |||
| Charging hour | 1.5h | 6.5h | 3.5-4h |
| Brakes | |||
| Brakes | Tektro Hydraulic | Hydraulic | Hydraulic |
| Tires | |||
| Tires | 700c | 700c | 700c |
| Transmission | |||
| Transmission | Shimano 10 speed | Automatic 4-speed | Shimano Deore BR-M6100 |
| Weight | |||
| Weight | 19kg | 23kg | 19.2kg |
